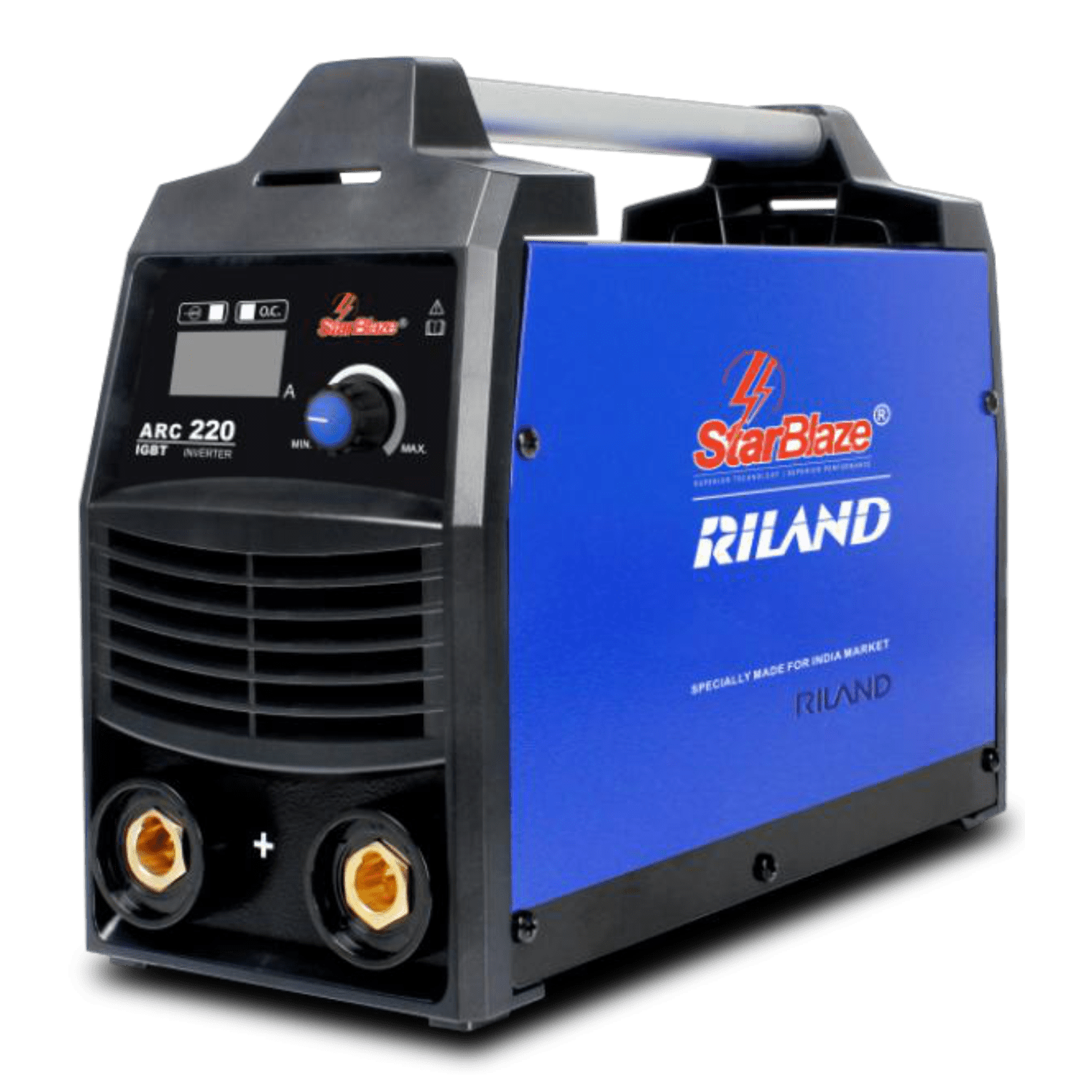

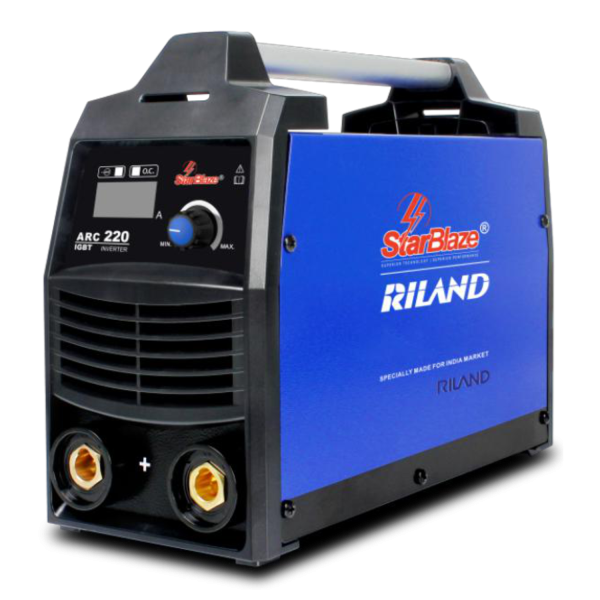

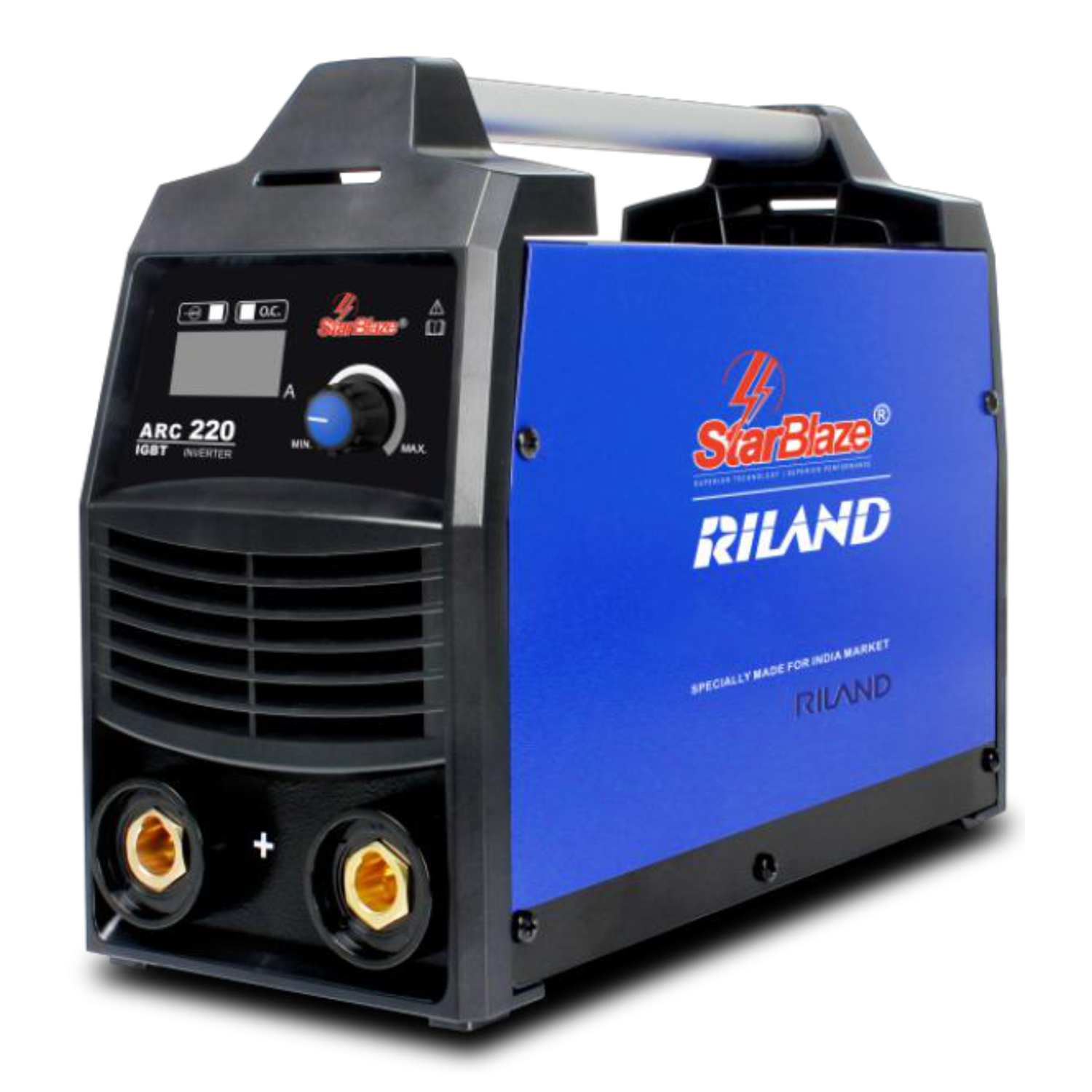

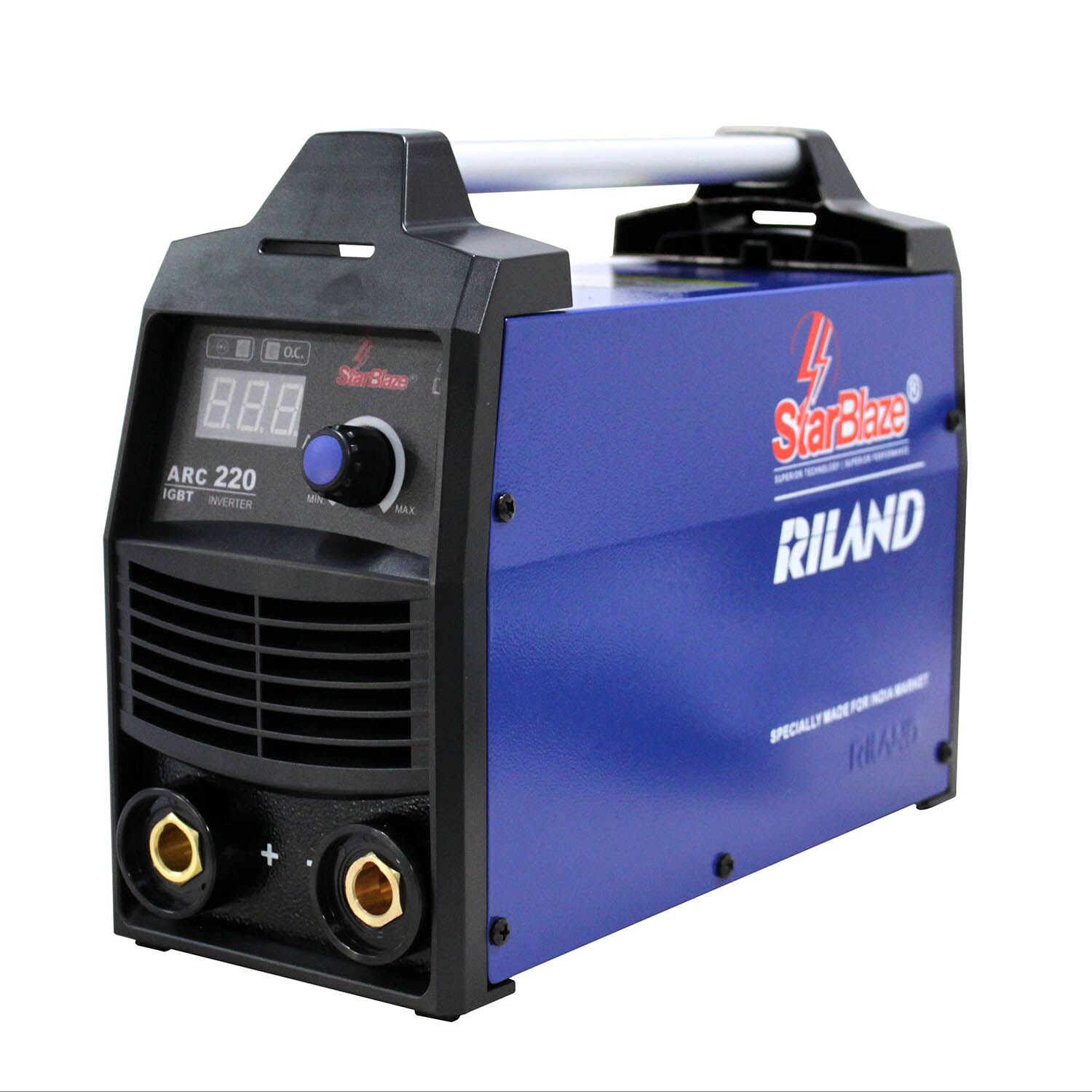

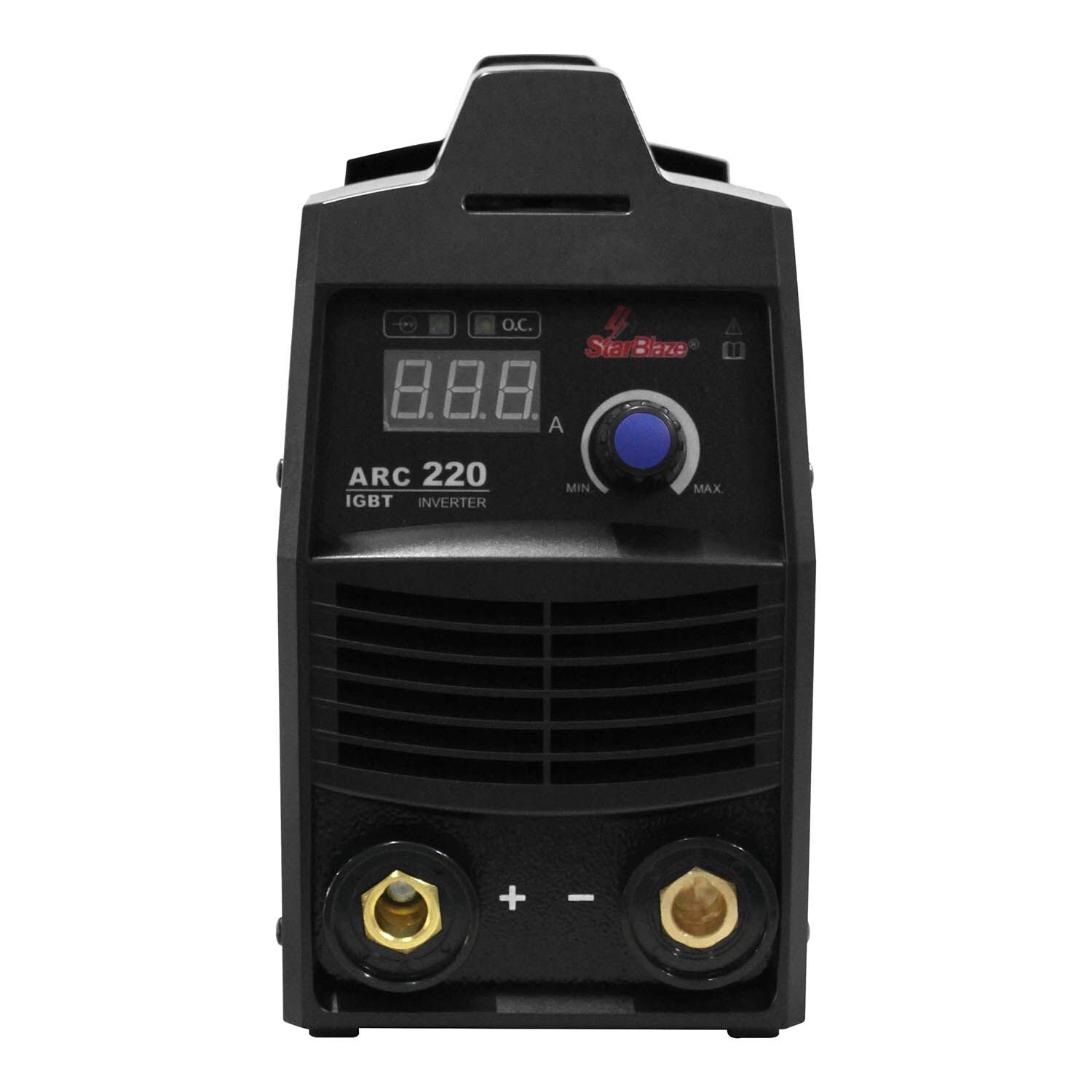

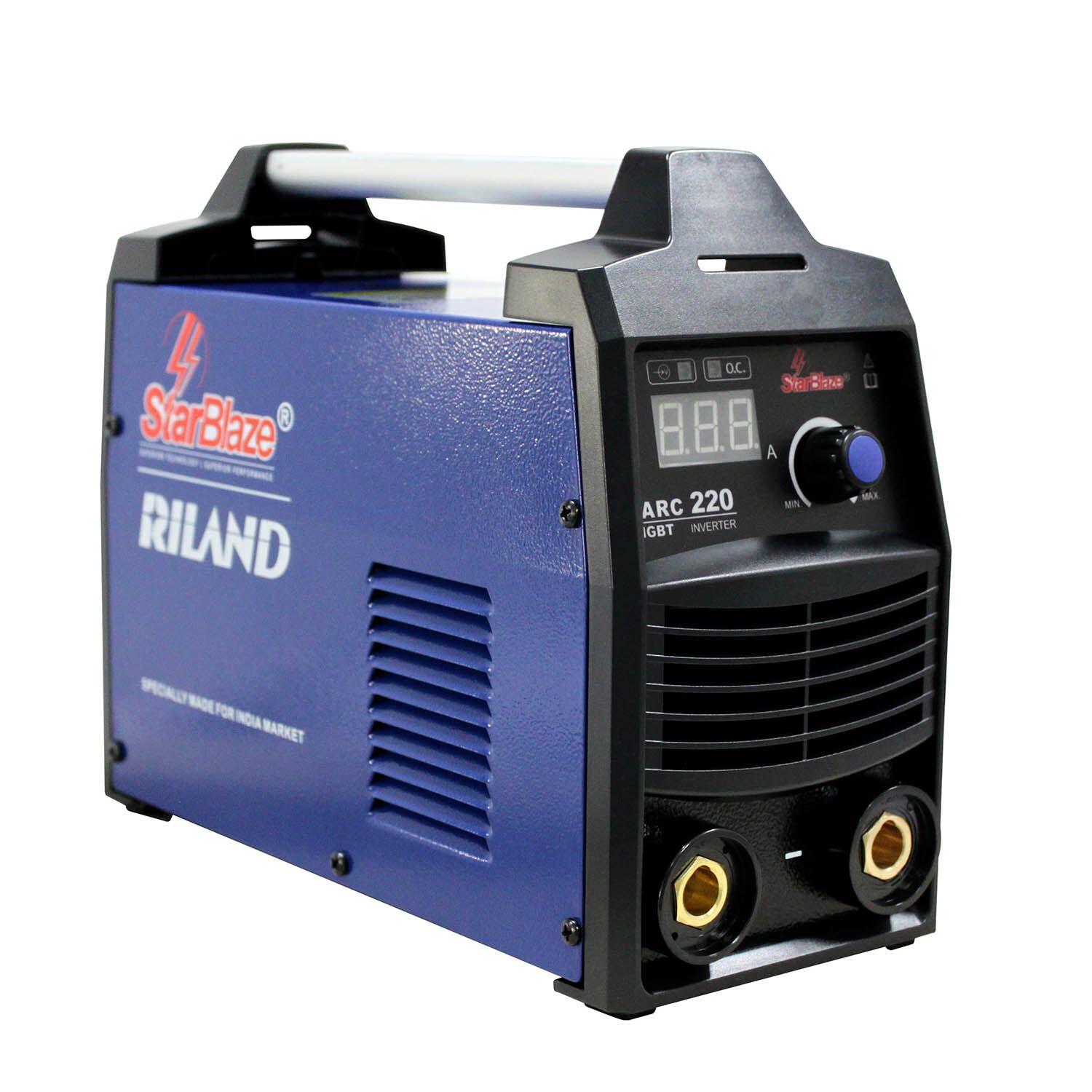

ARC 220
The ARC 220 is a new-generation, compact MMA welding machine engineered for greater control and broader electrode compatibility. Featuring RILAND’s RICHIP chip and advanced IGBT technology, this 3.7 kg unit offers seamless welding performance on both acidic and basic electrodes (2.5 mm and 3.2 mm). It includes intelligent MCU-based controls, a digital LED current display, and safety protections for a smooth, reliable operation across maintenance and light fabrication jobs.

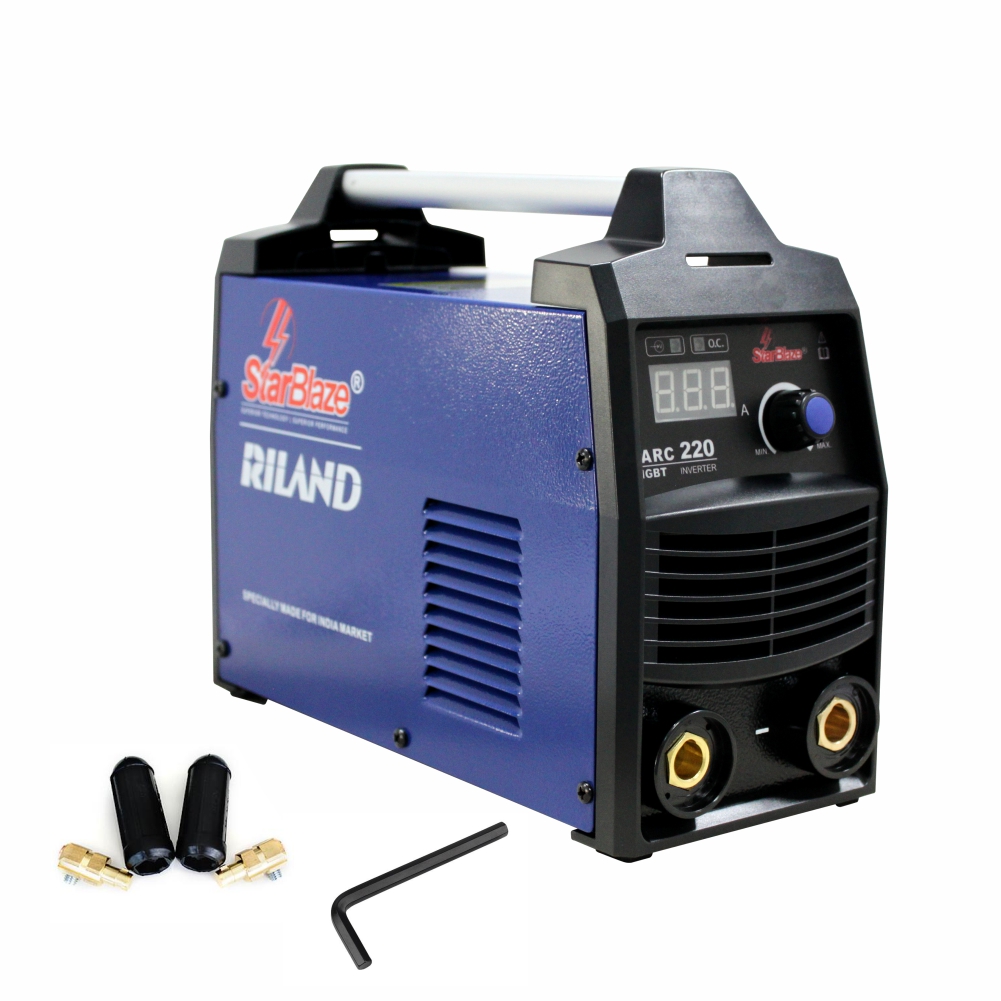

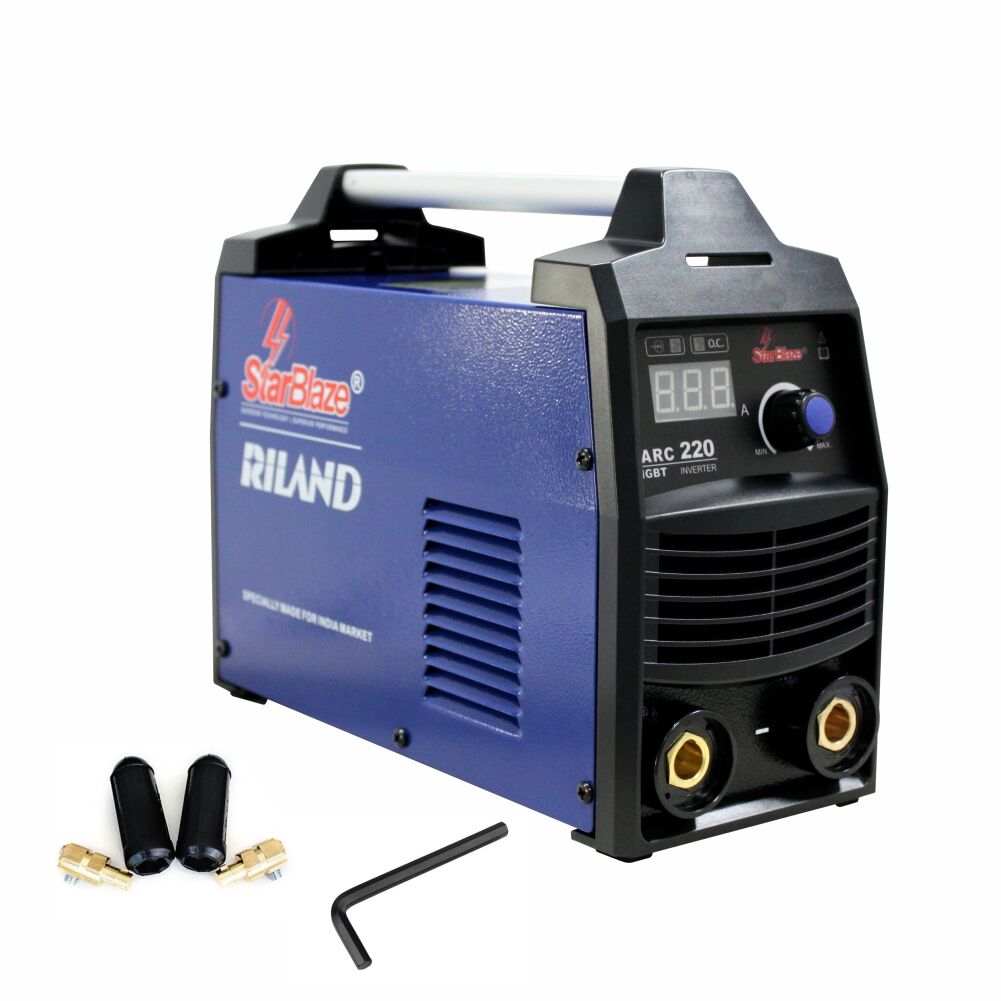

Available in Pack: Single-unit pack with 220V input cord, 2 quick plugs, and 1 allen key.
Key Features
- RILAND RICHIP chip with high-grade IGBT technology
- Wide input voltage range: 220V ±15%
- LED display for real-time welding current
- Intelligent MCU control with built-in power management
- Output reactor for acidic and basic electrodes
- Anti-stick, hot start & arc force functions for smoother welding
- Compact and portable at just 3.7 kg
Industries
- Light Steel Structure Fabrication
- Sheet Metal Processing
- Machinery Maintenance
- General Repair & Installation
- Workshops and Job Shops
- Light Steel Structure Fabrication
- Sheet Metal Processing
- Machinery Maintenance
- General Repair & Installation
- Workshops and Job Shops
Processes
MMA (Manual Metal Arc)
Additional Details
- Best suited for low to medium duty cycles; avoid use in heavy fabrication settings.
- Output reactor supports a variety of electrode types but may require adjustment for coated rods.
- Ensure adequate cooling airflow to maintain efficiency and prevent overheating.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Input Voltage | 1P – 220V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 32.9 |
| Rated Input Power (kVA) | 7.24 |
| Output Current Range (A) | 30–200 |
| No-load Voltage (V) | 58 |
| Insulation Grade | F |
| Efficiency | >85% |
| Housing Protection Grade | IP21 |
| Weight (kg) | 3.7 |
| Dimensions (mm) | 295 Ă— 130 Ă— 235 |
