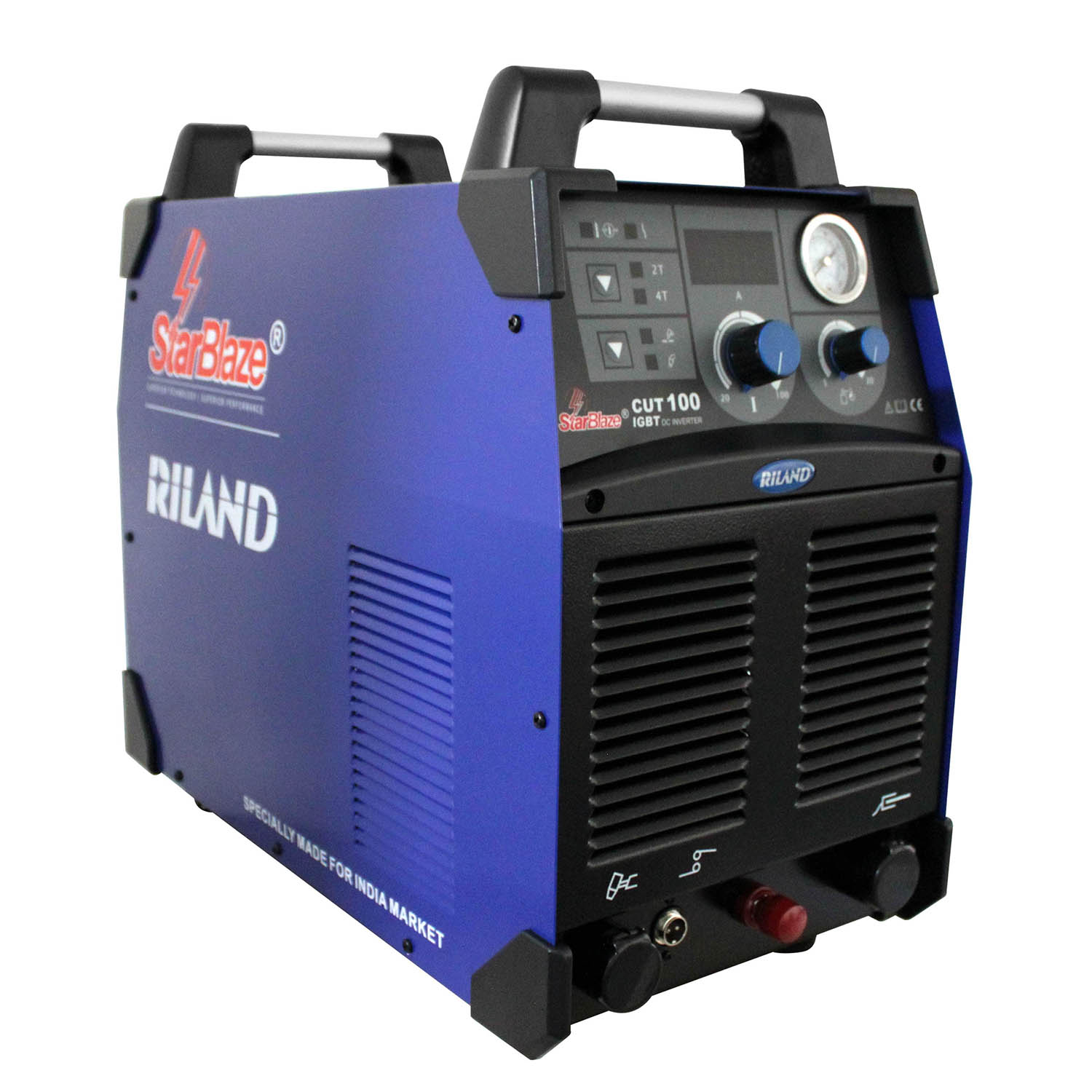

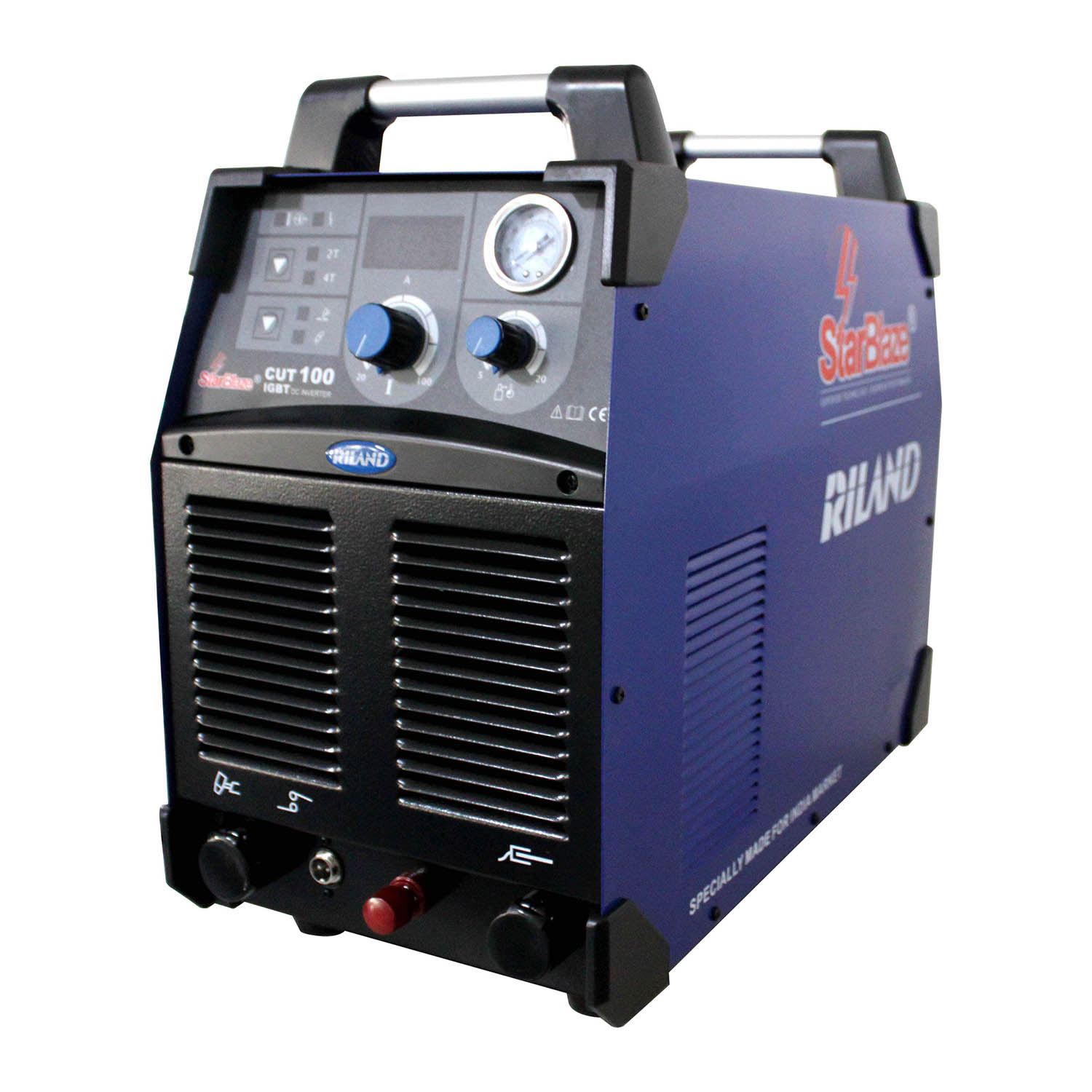

Cut 100
The Cut 100 is a high-performance industrial plasma cutting machine designed for precision cuts across a wide range of metals, from mild steel to alloyed and stainless steels. Powered by advanced IGBT inverter technology and built for heavy-duty operations, it offers reliable, stable cutting performance with adjustable current and post-flow settings. Its simple rotary knob interface, air pressure display, and CNC compatibility make it ideal for both manual and automated workflows in shipbuilding, fabrication yards, and foundries.

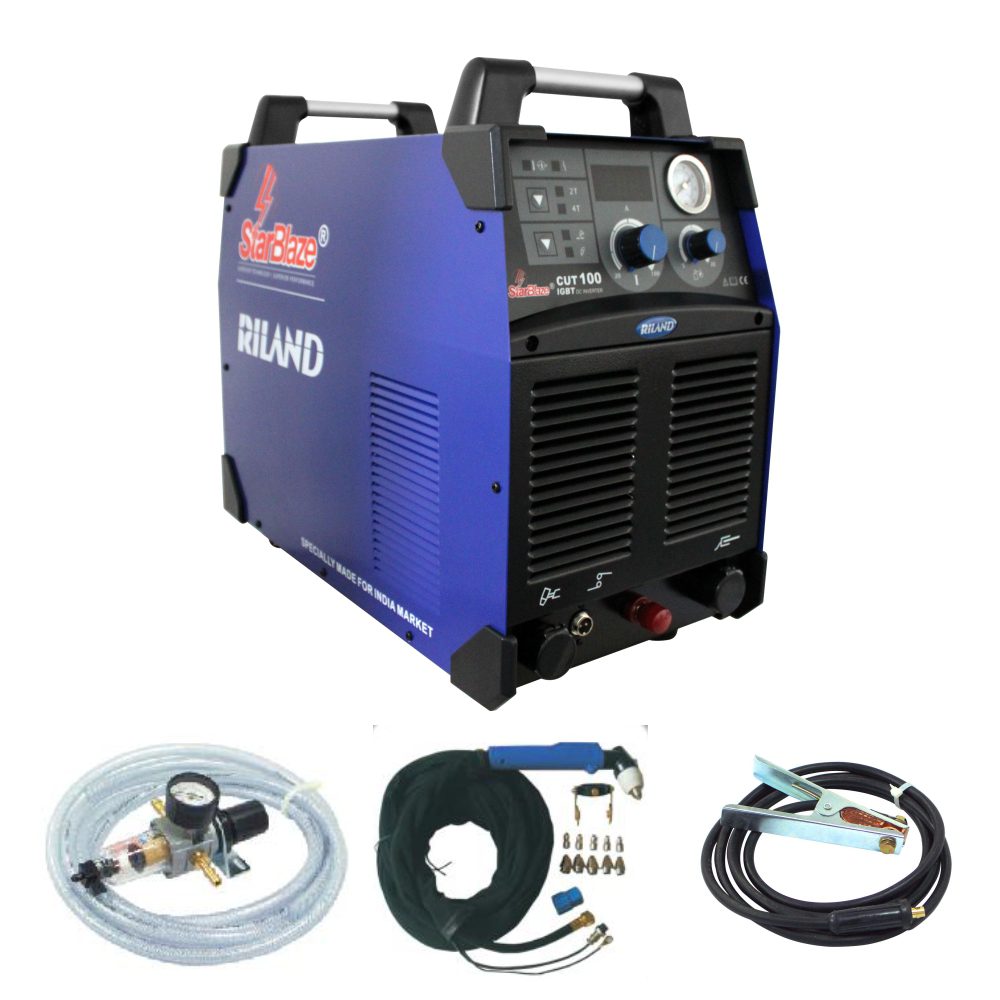

Available in Pack: Inverter power source (without input cord), P80 cutting torch, earth clamp with cable and plug, and gas hose.
Key Features
- IGBT inverter for high-efficiency, stable cutting
- Suitable for up to 30 mm thick cuts (up to 40 mm limited)
- Adjustable current and post-flow time
- Compressed air pressure gauge on the front panel
- Generator-friendly for site mobility

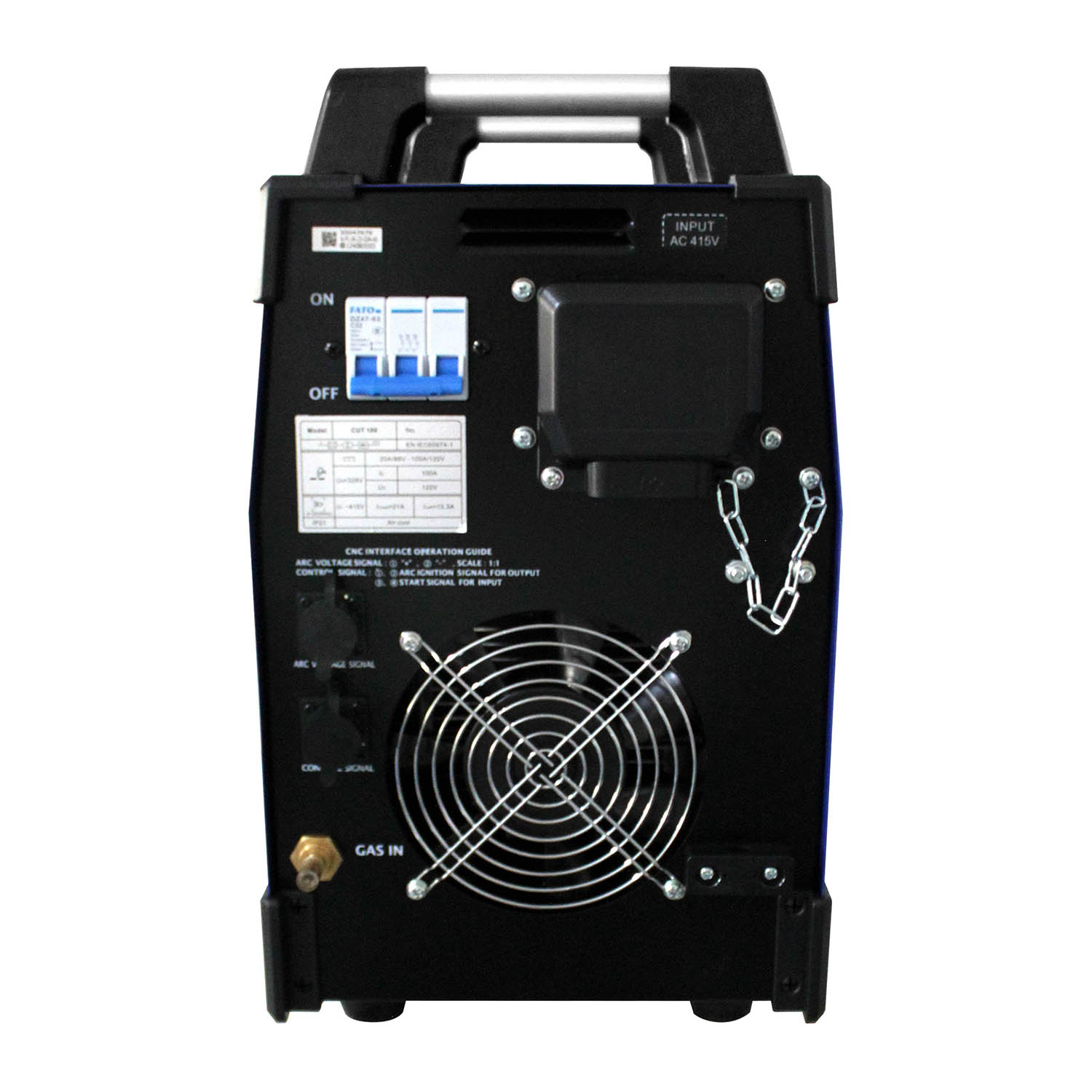

- CNC-compatible with standard signal output socket

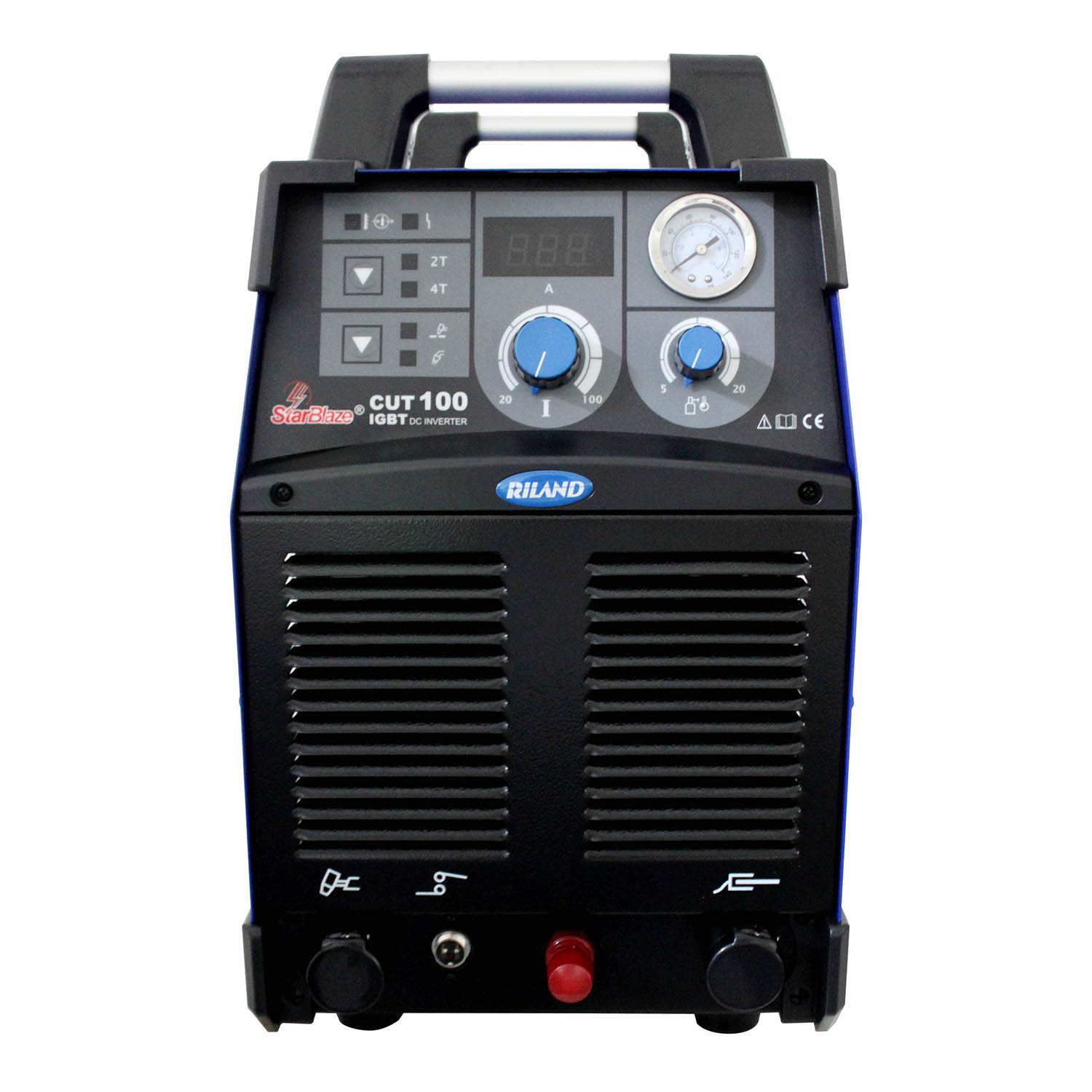

- Simple interface with rotary knob and digital display
- 2T/4T operation modes for flexibility
Industries
- Steel Erection & Fabrication
- Shipbuilding & Offshore
- Pipe Cutting & Maintenance
- Foundries
- Heavy Equipment Workshops
Processes
Plasma Cutting (Manual or CNC-compatible)
Additional Details
- For optimal results, use clean, dry compressed air and maintain recommended pressure levels.
- Best suited for cutting thicknesses between 1 mm to 30 mm.
- Ensure proper grounding and input voltage for consistent arc performance.
- Store in a cool, dry place.
- Refer TDS for more information.
Product Details
| Parameter | Cut 100 |
| Input Voltage | 3P – 415V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 21.0 |
| Rated Input Power (kVA) | 15.0 |
| Output Current (A) | 20–100 |
| Cutting Output Voltage (V) | 328 |
| Power Factor | >0.93 |
| Efficiency | >85% |
| Insulation Class | H |
| Housing Protection Grade | IP21 |
| Weight (kg) | 25.6 |
| Dimensions (mm) | 526 × 272 × 468 |
