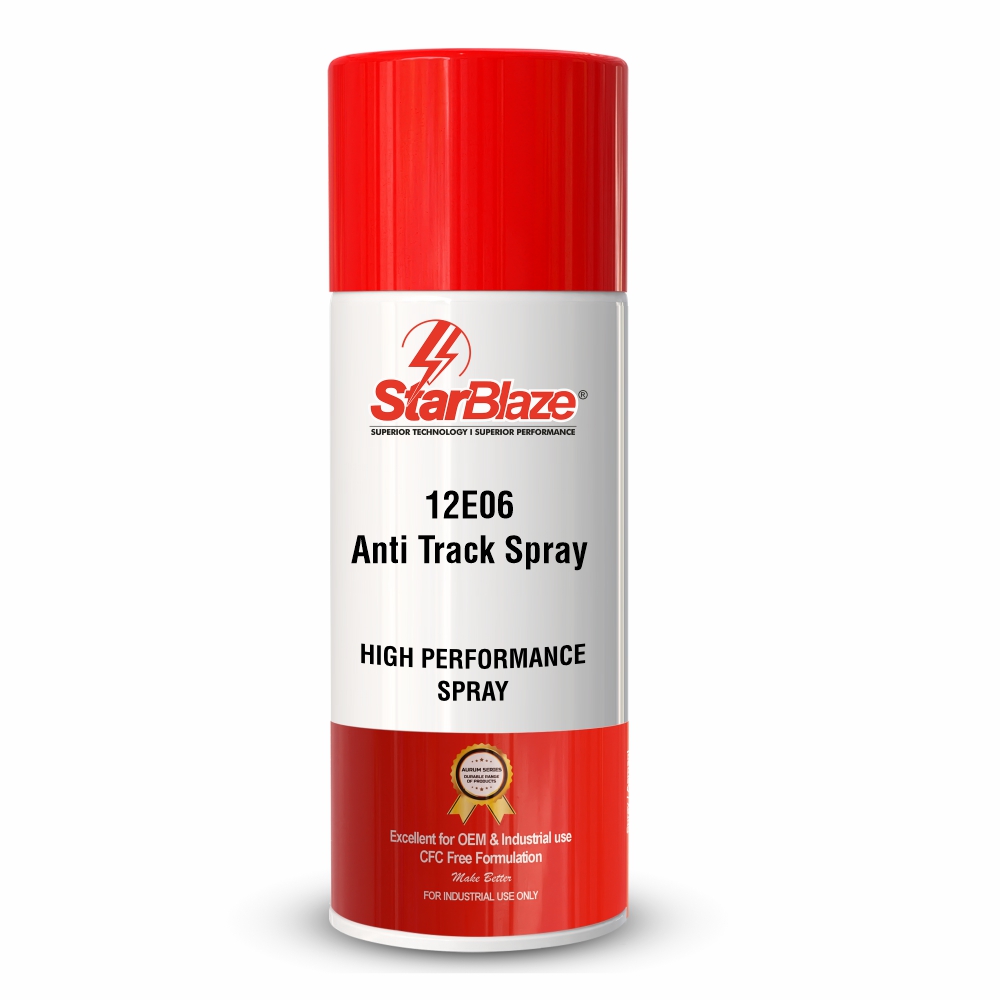

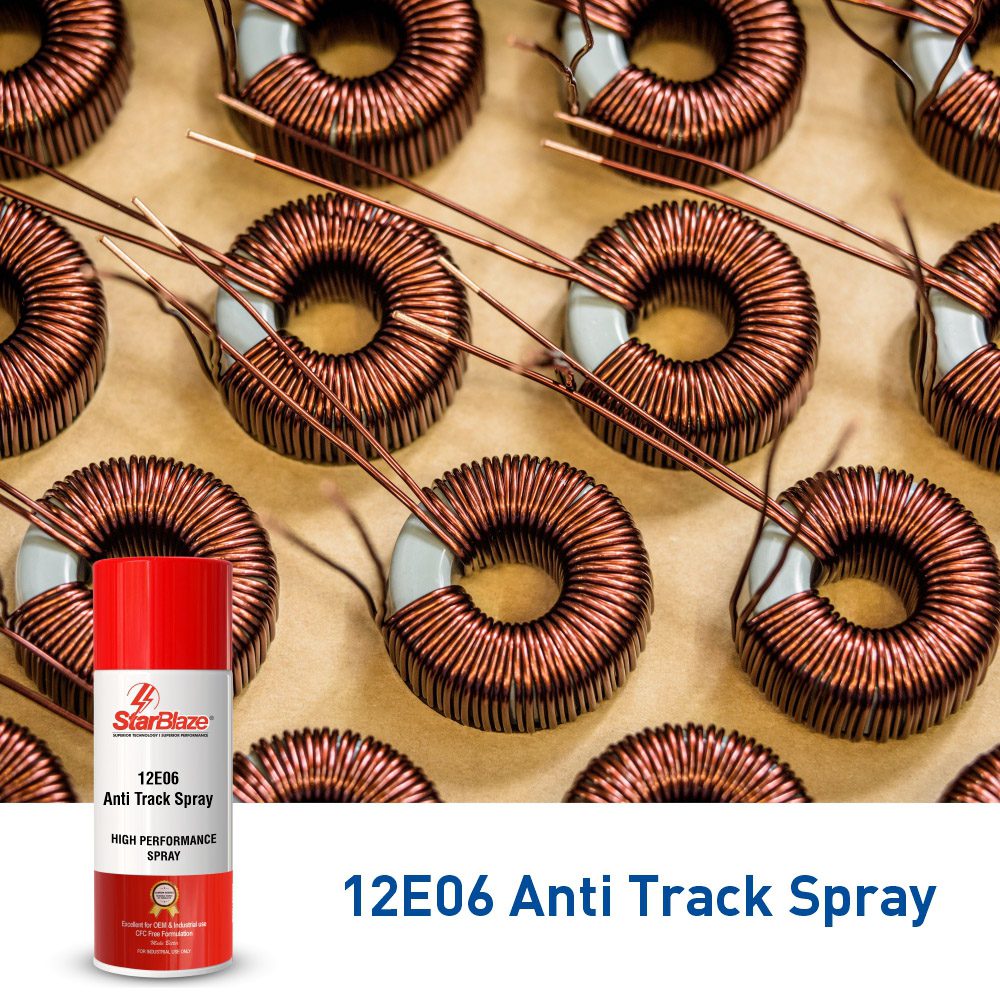

StarBlaze12E06 Anti Track Spray
STARBLAZE 12E06 Anti-Track Spray is a single-component, air-drying “Class H” epoxy insulation formulation engineered to provide excellent adhesion and outstanding dielectric strength for high-voltage applications. This product is especially suited for insulating field coils, exposed metals, windings, busbars, collector rings, and transformers.
It resists dust and moisture penetration, delivering dependable protection for components operating in demanding environments. With a dielectric strength of 2,100 volts/mil, 12E06 ensures robust insulation that meets the needs of professional electrical maintenance and manufacturing.
This epoxy ester-based spray uses acetone and xylene solvents with a dimethyl ether propellant, offering a fast evaporation rate and a high gloss finish. Suitable for in-situ IR value upgrades and long-term reliability.
Available Packs: 330 ml
- Air dries in 15 minutes and hardens within 1 hour.
- Provides high electric strength: 121 KV/mm at 28°C & 81 KV/mm at 180°C.
- Thermal Class H performance.
- Dust and moisture repellent.
- Enhances insulation lifespan and reliability.
- Electrical Equipment Manufacturing
- Power Distribution and Transmission
- Motor Repair Shops
- Transformer and Switchgear Assembly
- Electrical insulation coating
- Surface sealing and dielectric upgrading
- Moisture protection of windings and busbars
