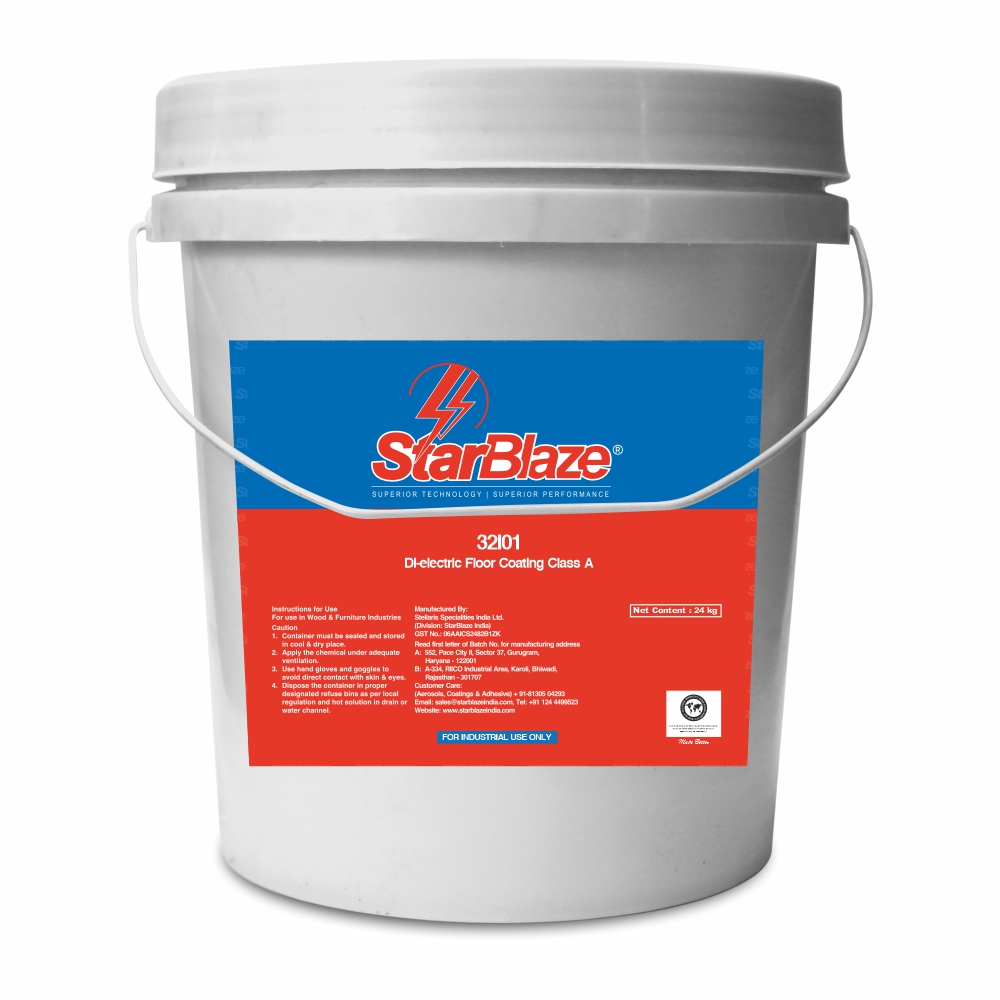

StarBlaze 32I01 Class A Di-Electric Floor Coating
Two-part, solvent-free, self-levelling insulation coating for concrete and metal surfaces. Delivers high dielectric strength and long-term protection in electrical and industrial installations.
- Available Packs: 1.5 kg, 6 kg, 24 kg systems
- Mixing Ratio by Weight: 2:1
- Pot Life: 35–45 min @ 25 °C
- Curing: Touch Dry: 2 hrs | Hard Dry: 24 hrs | Full Cure: 72 hrs
- Shelf Life: 12 months (sealed, stored <25 °C)
- High BDV (>30 kV) for reliable insulation
Self-levelling, smooth finish
Moisture, chemical, and abrasion resistance
Light grey colour improves visibility and inspection
Solvent-free, low VOC system
Complies with IS 2584 and IEC 60243 Class A
Suitable for concrete and metal floors - Chemical and abrasion-resistant
- Superior aesthetics with high build-up thickness
- Certified as per IS 2584 and IEC 60243
High Voltage Substations
Power Distribution Infrastructure
Battery Rooms & Control Panels
Electrical Insulator Yards
FRP Barriers for Rail Infrastructure
Transformer and Capacitor Bays
Cable joints, capacitors, transformers
Surface cleaning and preparation (ST2/ST3 or SA2.5)
Mixing of 2-component system (Part A:B = 2:1)
Application of primer and topcoat
Recoating after 2 hours, 4-coat system
Final curing: 72 hours
Product Details
STARBLAZE 32I01 is a solvent-free, two-part self-levelling dielectric coating formulated to protect concrete and metallic surfaces in electrical and heavy industrial facilities. Developed for Class A insulation, it delivers a dielectric strength exceeding 30 kV and forms a seamless protective barrier with excellent adhesion.
