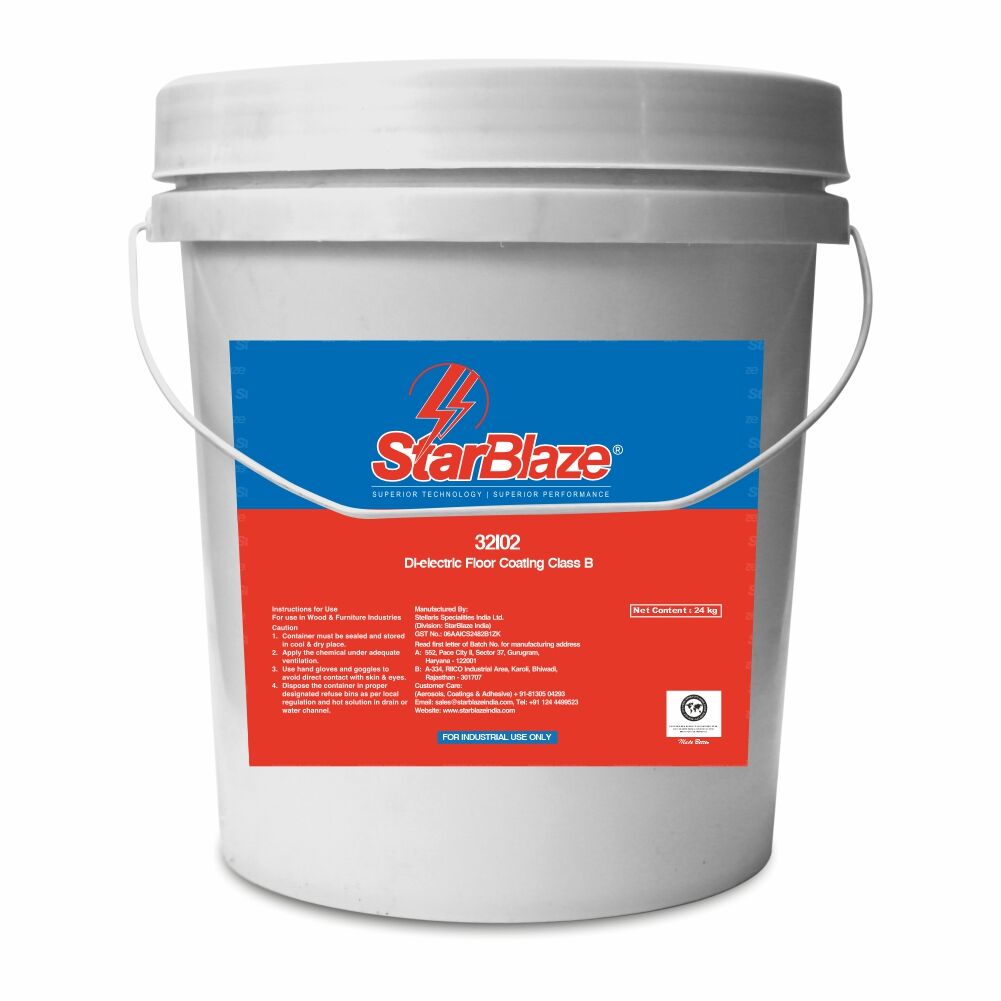

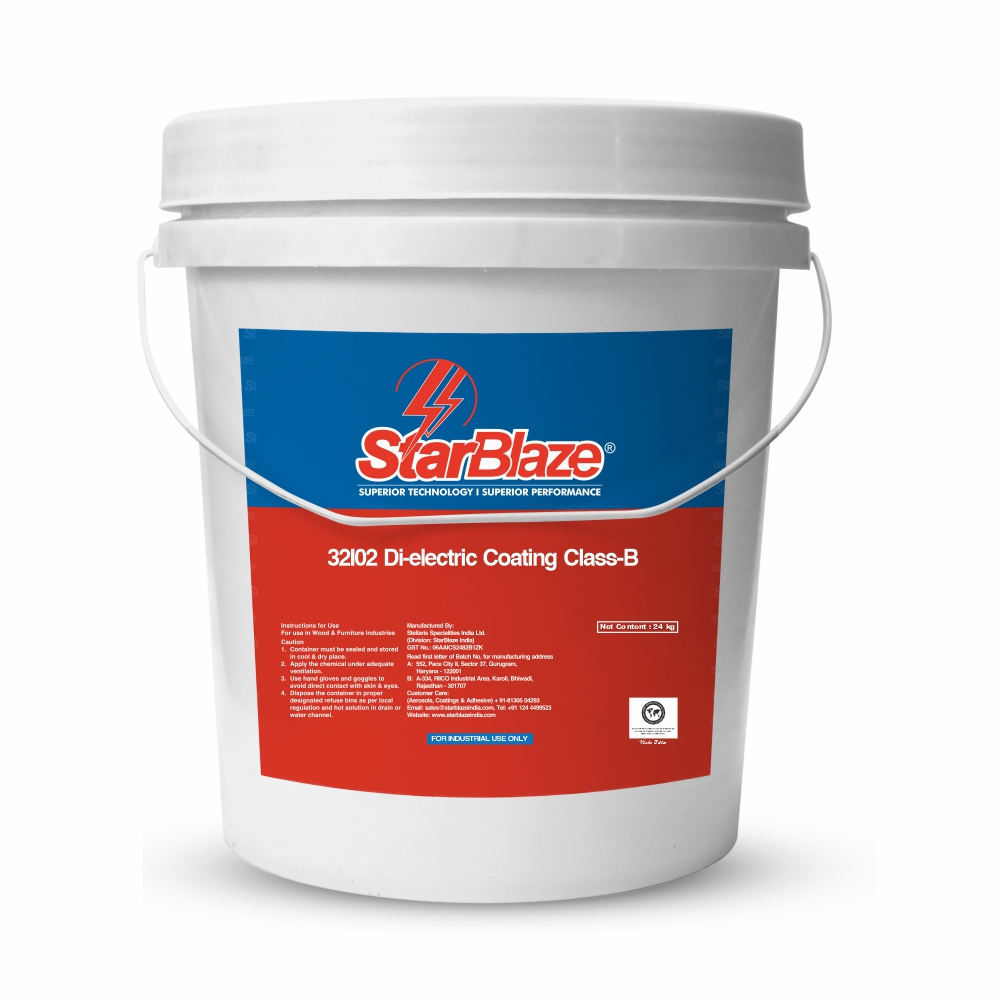

StarBlaze 32I02 Di-electric Floor Coating Class-B
STARBLAZE 32I02 is a solvent-free, two-component, high-performance di-electric coating designed for insulating and protecting concrete and metallic surfaces in high-voltage environments. With a breakdown voltage exceeding 48 kV and excellent adhesion, it provides superior electrical insulation and chemical resistance in substations, switchgear rooms, battery areas, and transformer yards.
The system cures to a seamless, self-levelling, high-build layer that resists oil, chemicals, abrasion, and moisture ingress. Its light grey finish offers a clean appearance while supporting safety inspection. STARBLAZE 32I02 complies with IS 2584 and IEC 60243 requirements, ensuring long-term reliability for mission-critical electrical installations.
Available Packs: 1.5 Kg, 6 Kg, 24 Kg Systems
- High BDV (>48 kV) for excellent insulation performance
- Self-levelling system enabling smooth, uniform film
- Chemical and moisture-resistant
- Long service life and low maintenance
- Good aesthetics with light grey finish
- Meets IS 2584 and IEC 60243 standards
- Suitable for concrete and metal substrates

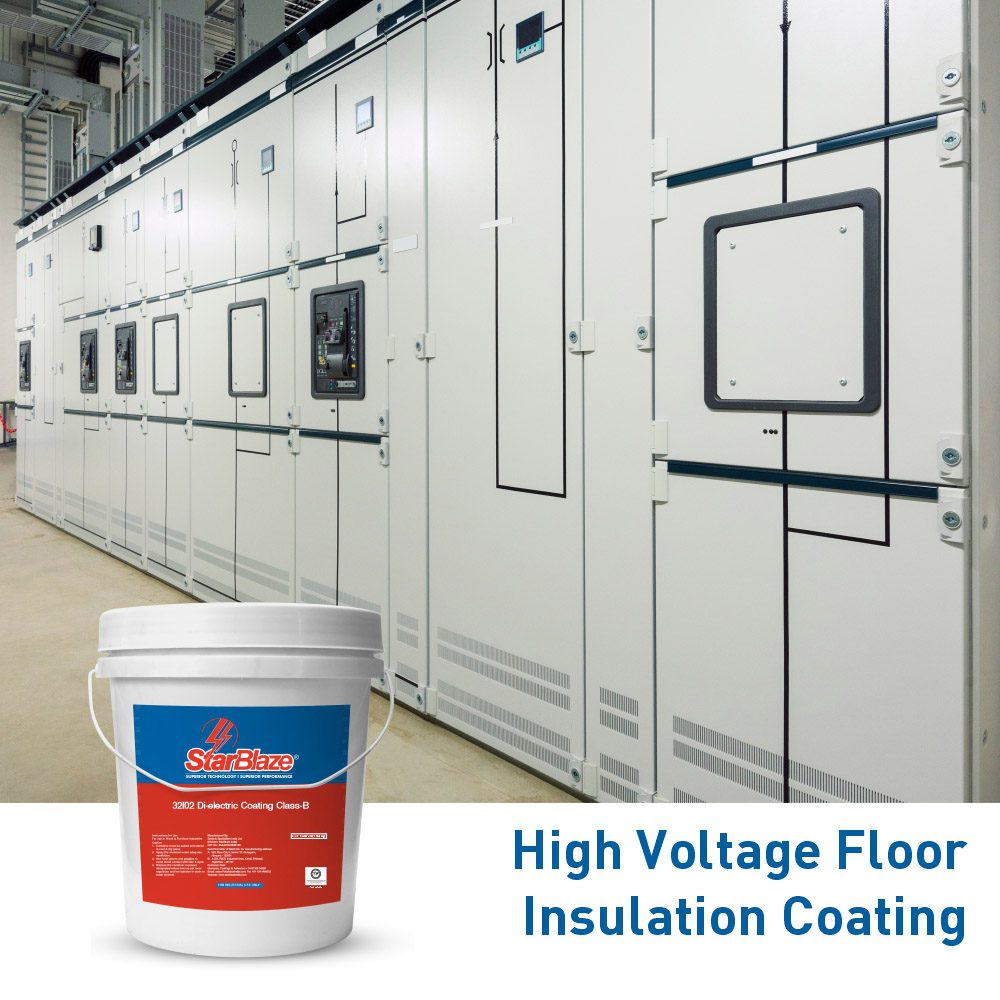

- High Voltage Substations & Switchgear Panels
- Electrical Transmission and Distribution Infrastructure
- Battery Rooms and Control Stations
- Busbar & Bushing Insulation
- FRP Barrier Boards and Rail Infrastructure
- Capacitor & Transformer Bays
- Di-electric Floor Coating for Electrical Rooms
- Self-Levelling High-Build Insulating Layer Application
- Chemical-Resistant Protective Coating for Concrete Floors
- Surface Sealing and Protection of Battery Storage Areas
- High Voltage Equipment Base Insulation
AG
Product Details
Related Products
- STARBLAZE 65B01 is a single-component, fast-drying structural paint designed for direct application on steel surfaces without primer. It forms a tough, cross-linked co-polymer film that delivers excellent corrosion protection and surface durability. With rapid drying time, strong adhesion, and a laminate-like finish, it is ideal for high-speed industrial coating cycles in fabrication yards, workshops, and field repairs. Resistant to salt spray, UV, and moderate heat, STARBLAZE 65B01 ensures long-term performance under demanding environmental conditions. Available Packs: 4L, 20L
- STARBLAZE 33B01 is a high-strength, epoxy-based, self-levelling screed formulated to deliver superior load-bearing capacity and chemical resistance on concrete substrates. Blended as a three-component system, it cures to a dense, abrasion-resistant layer ideal for use under epoxy top coats or as a standalone heavy-duty flooring solution. Designed for high-impact and chemically aggressive environments, 33B01 achieves compressive strengths over 36 MPa, tensile strengths exceeding 10 MPa, and bond strength surpassing the cohesive strength of the concrete itself. Its self-levelling properties ensure uniform surfaces even over uneven or repaired substrates. Suitable for acid bunds, containment zones, production floors, and vehicle traffic areas, it provides reliable performance where hygiene, durability, and resistance to industrial chemicals are essential. Available Packs: Three pre-weighed packs (Base, Hardener, Aggregate)
- Two-part, solvent-free, self-levelling insulation coating for concrete and metal surfaces. Delivers high dielectric strength and long-term protection in electrical and industrial installations.
- Available Packs: 1.5 kg, 6 kg, 24 kg systems
- Mixing Ratio by Weight: 2:1
- Pot Life: 35–45 min @ 25 °C
- Curing: Touch Dry: 2 hrs | Hard Dry: 24 hrs | Full Cure: 72 hrs
- Shelf Life: 12 months (sealed, stored <25 °C)
