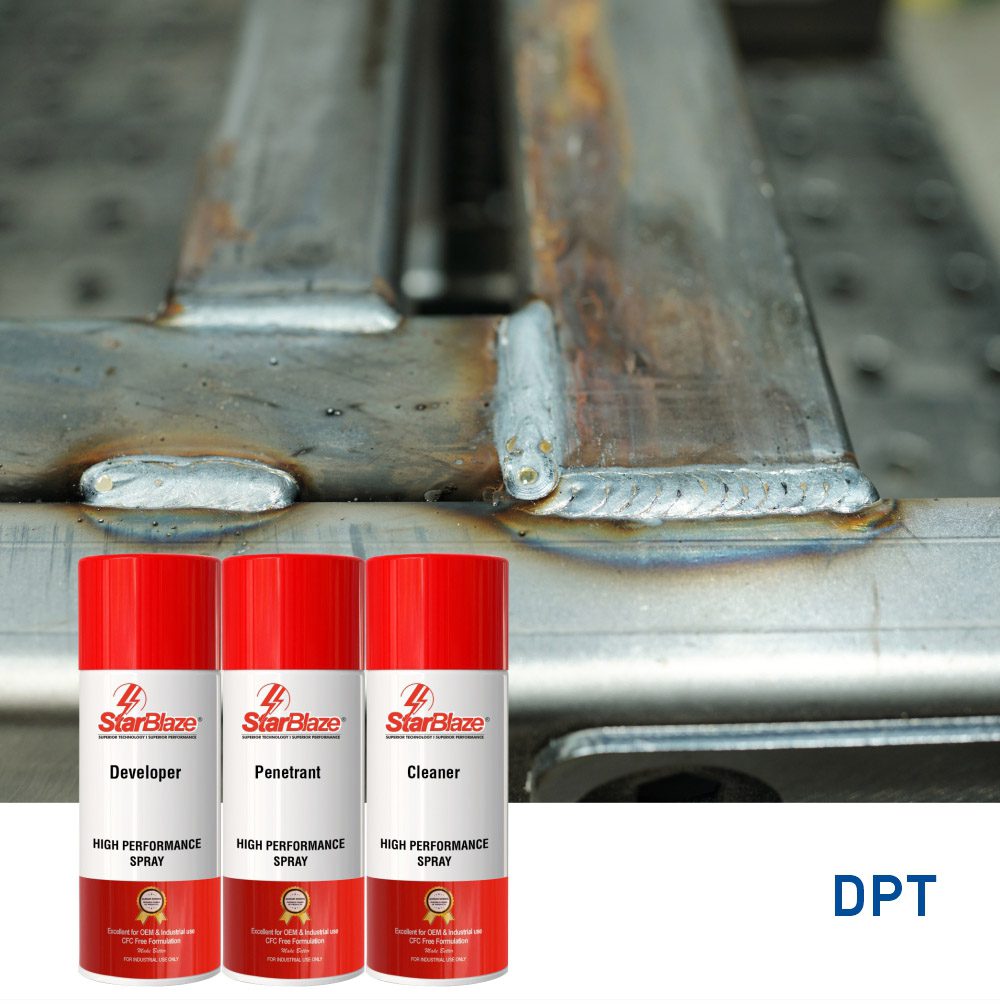

StarBlaze DPT Kit
The StarBlaze DPT Kit combines three high-performance aerosols (Developer, Penetrant, and Cleaner) for precise flaw detection across diverse materials like metals, plastics, and ceramics.
Developer: % Volatile by volume: 94%, Specific Gravity <1, Vapour Pressure: 45–55 Psig, Non-toxic formulation
Penetrant: Red ultra-high penetration dye, Specific Gravity <1, Non-toxic formulation
Cleaner: Non-chlorinated solvent, Fast-drying, % Volatile by volume: 100%, Non-toxic formulation
This system is ideal for inspecting weld deposits, castings, forgings, and assemblies. It is widely used to prevent breakdowns, injuries, or losses caused by undetected surface flaws.
Available Packs: 330 ml, 400 ml, 500 ml
Key Features
- Detects a wide spectrum of flaw sizes, from 1 micron up to 30 microns depth.
- Superior capillary action; Non-toxic, Non-corrosive formulation.
- Free from halides and sulfides.
- Confirms to MIL-I-25135, MILSTD 271, IS:3658-1988 standards.
- CFC-free formulation.
Industries
- Fabrication and Welding
- Railways and Shipbuilding
- Petrochemical Plants
- Heavy Engineering
- Utilities & Infrastructure Maintenance
Processes
- Non-destructive Testing (NDT)
- Inspection and Maintenance
- Quality Assurance Checks
- Stress Corrosion Analysis
- Periodic Asset Reliability Audits
