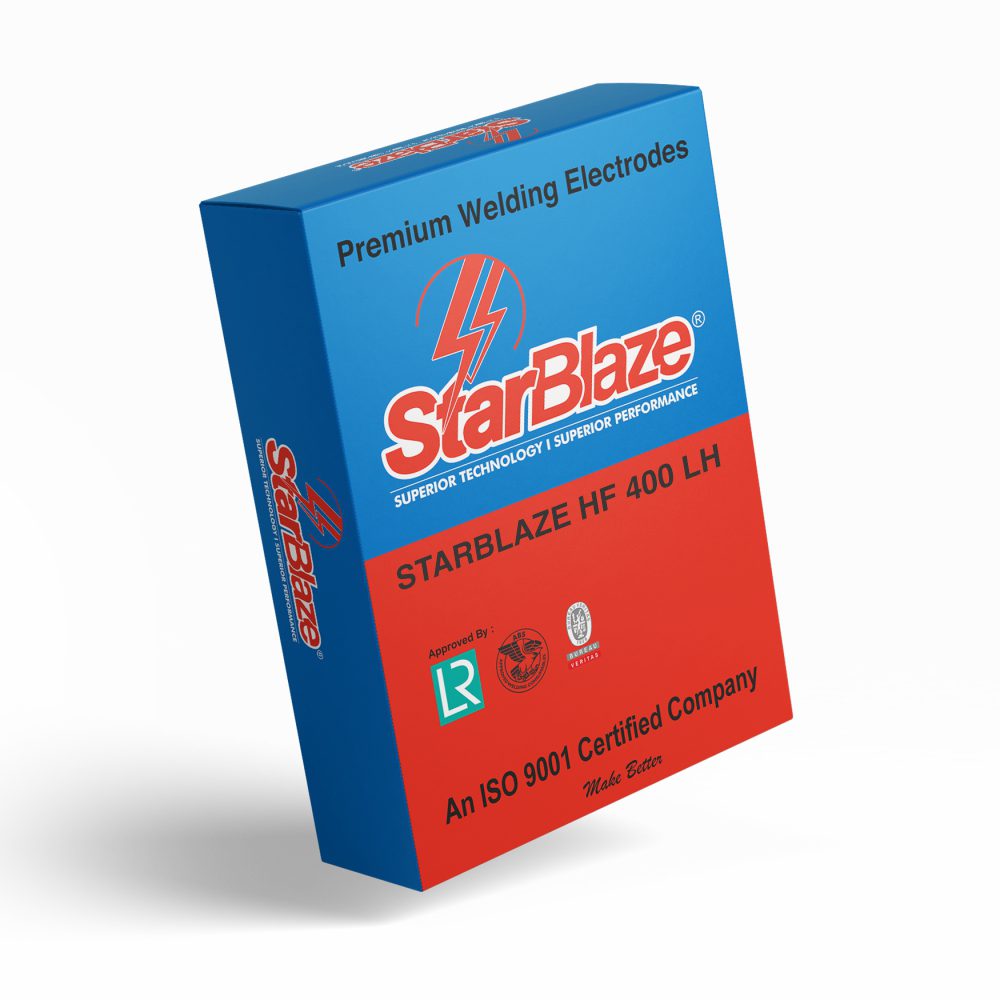

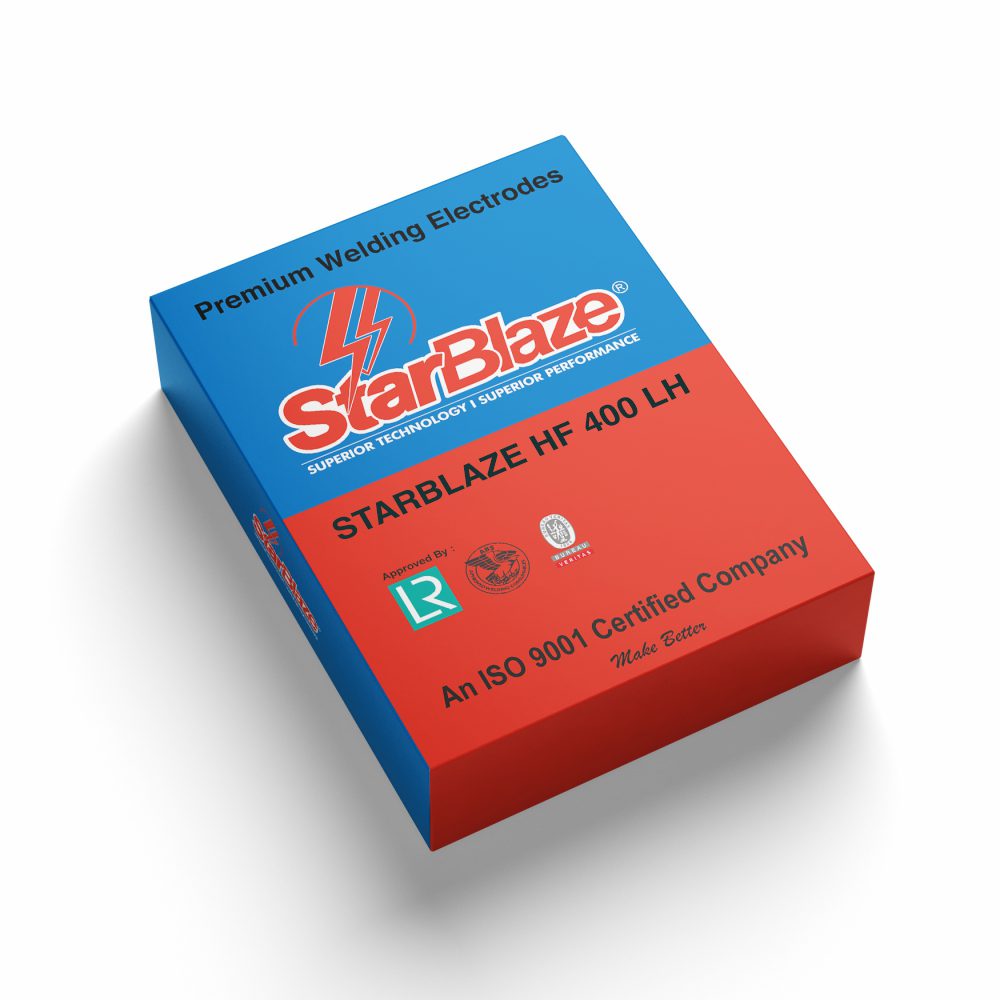

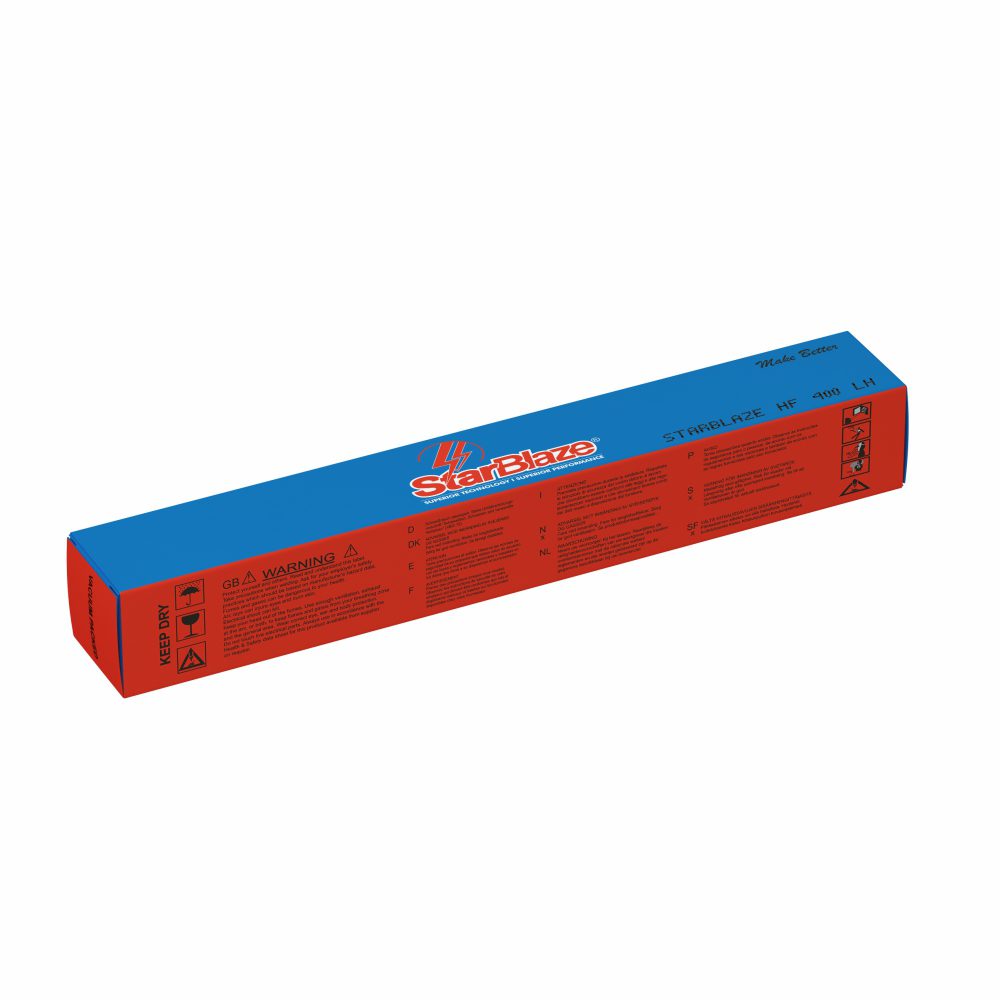

StarBlaze HF 400 LH
DIN 8555: E1-UM-350P
30–35 HRc Hardness | All-Position Build-Up | Machinable & Durable
An all-position, basic-coated hardfacing electrode engineered for depositing wear-resistant chromium-manganese alloy weld metal. Designed for parts subject to sliding friction, mild impact, and dynamic surface wear. Delivers a clean, low-spatter arc and forms a tough yet machinable weld deposit, making it ideal for rebuilding worn components in construction, mining, and material handling.
Available Packs:
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 5.00 mm x 450 mm – 5 kg box
- Master cartons up to 20 kg
- Custom packaging available on request
Key Features
- Weld deposit hardness: 30–35 HRc
- Good machinability with standard tools
- Excellent friction and mild impact resistance
- All-position welding capability (PA, PB, PC, PF)
- Low spatter and smooth, stable arc
- Ideal for build-up and layering jobs before final hard overlays
Industries
- Construction Equipment Maintenance
- Mining & Quarrying Components
- Cement & Brick Industry Wear Parts
- Agricultural Tools & Implements
- General Fabrication Shops (Repair/Refurbishment)
Processes
- Manual Metal Arc Welding (MMA / SMAW)
- Polarity: AC or DC+
- Welding positions: PA (flat), PB (horizontal), PC (horizontal butt), PF (vertical up)
Additional Details
- Typical weld metal chemical composition (%):
• C: 0.20 • Si: 0.40 • Mn: 0.50 • Cr: 2.80 • Fe: remainder - Recommended amperage:
• 3.15 mm – 80–110 A
• 4.00 mm – 120–160 A
• 5.00 mm – 150–200 A - Re-drying (if required): 300–350 °C for 1–2 hours
- Weld 2–3 layers for optimal wear build-up
- Clean cracked and spalled surfaces thoroughly before welding
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Si | Mn | Cr | Fe |
| 0.20 | 0.40 | 0.50 | 2.80 | Rem |
Typical Mechanical Properties (All Weld Metal)
| Hardness |
| 30 – 35 HRc |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 3.15 | 80-110 |
| 4.00 | 120-160 |
| 5.00 | 150-200 |
