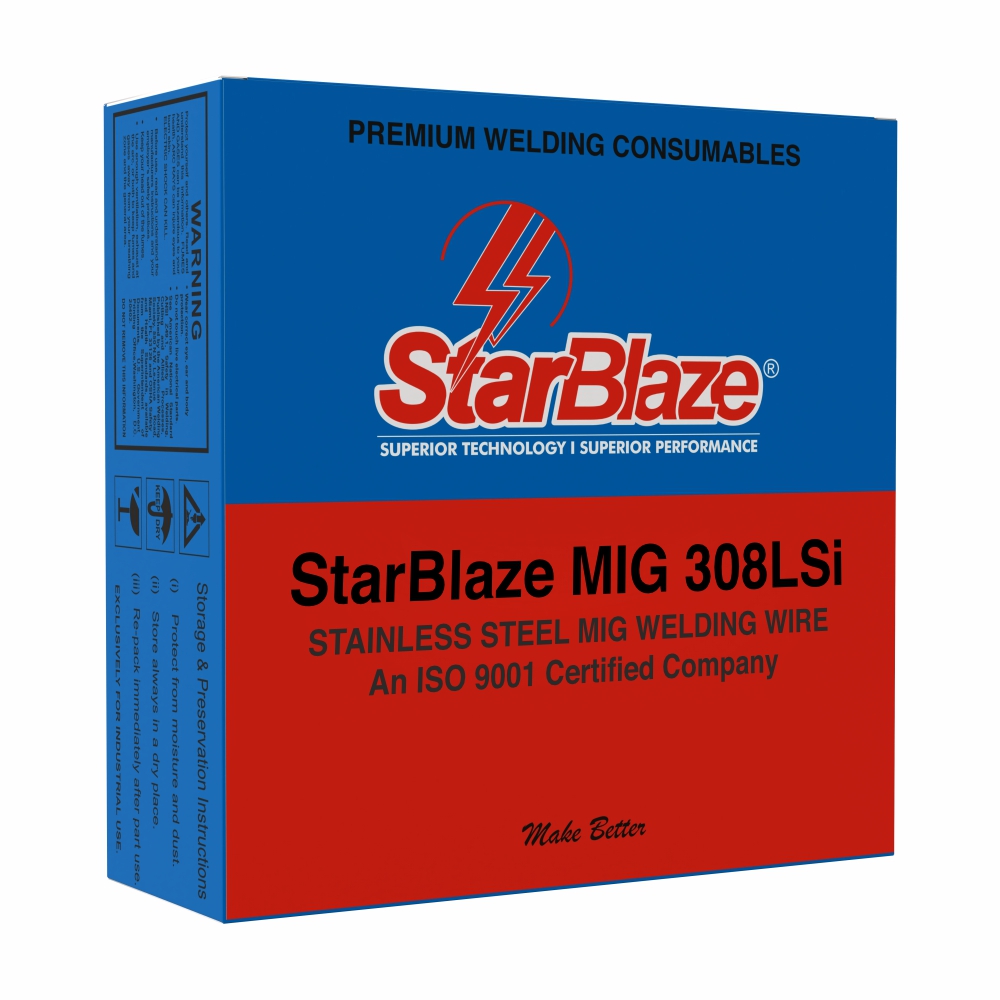

StarBlaze MIG 308LSi
AWS A5.9: ER 308LSi | EN ISO 14343-A: G 19 9 L Si

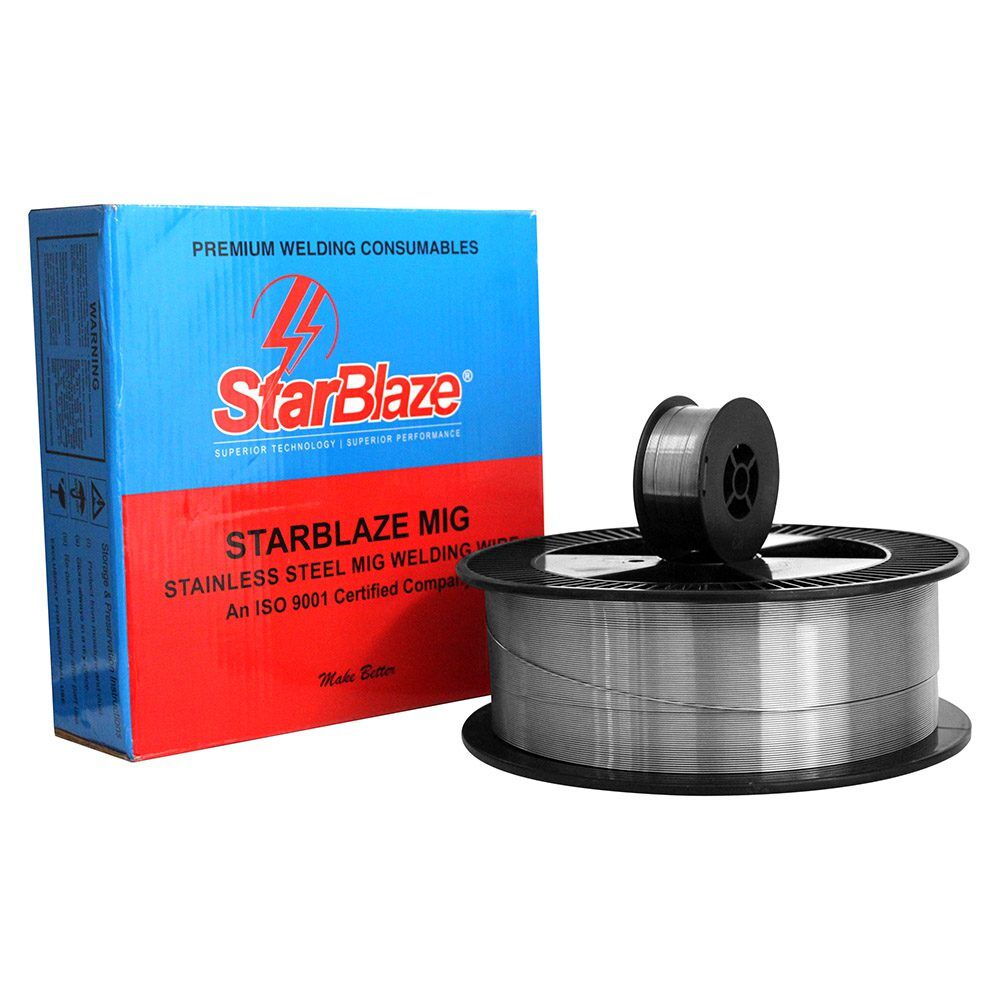

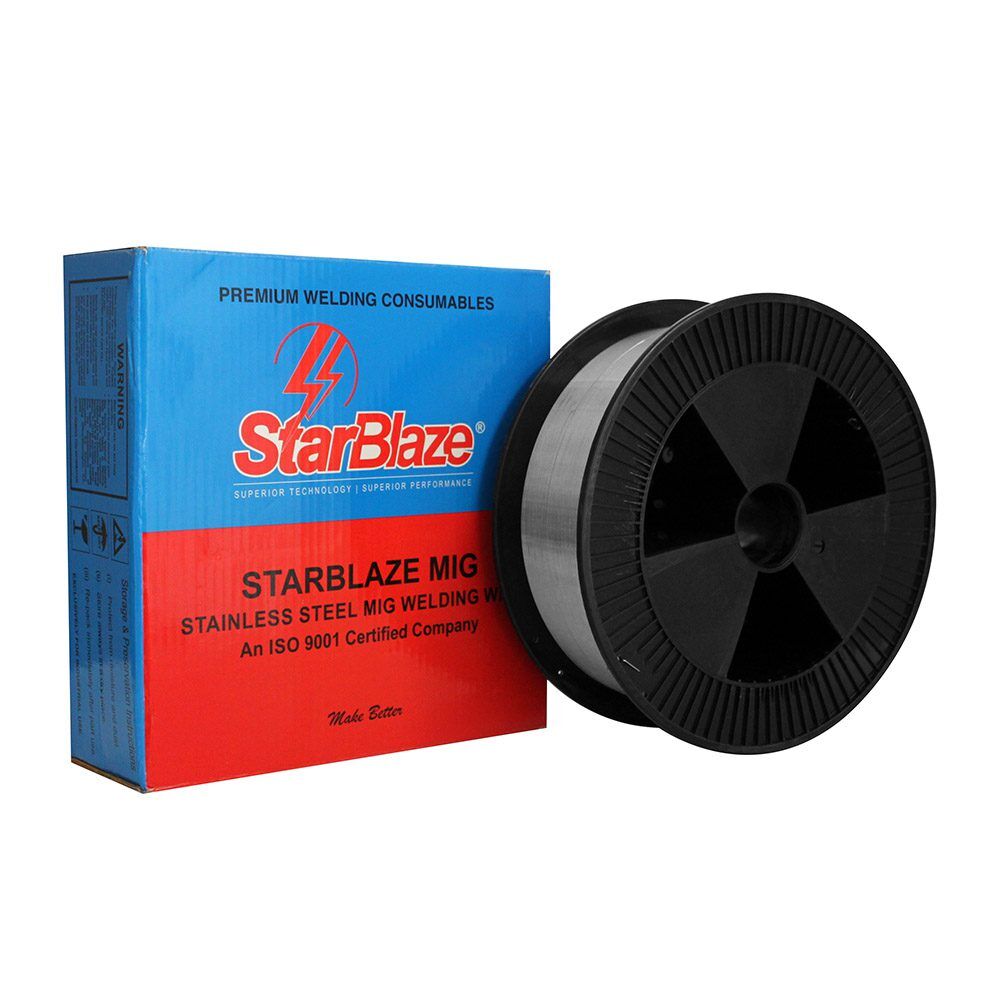

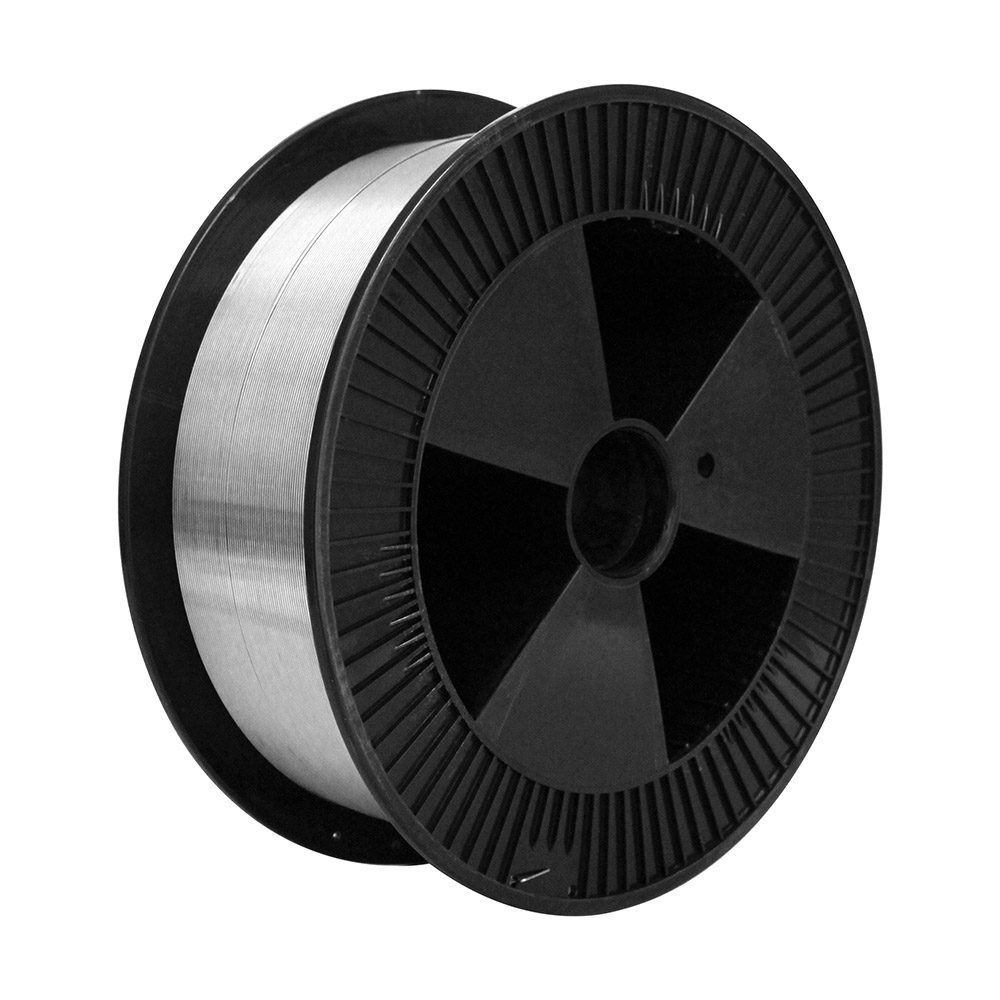

StarBlaze MIG 308LSi is an extra-low carbon stainless steel MIG wire with enhanced silicon content, designed for welding austenitic stainless steels such as AISI 301, 302, 304, 304L, 308, and 308L. With a Cr/Ni composition of 20Cr/9Ni and silicon levels around 0.80%, it delivers excellent weldability, arc stability, and bead appearance. The wire is ideal for food processing, chemical equipment, piping, and boiler fabrication. Precision layer-wound and processed for smooth feeding and minimal spatter, it performs reliably across all welding positions.
- Diameters: 0.6 mm – 1.6 mm
- Pack size: 1 kg, 5 kg, 12.50 kg, 15 kg
Key Features
- Extra-low carbon (≤0.03%) for intergranular corrosion resistance
- Higher silicon content (0.65–1.00%) for improved fluidity and finish
- Suitable for welding “18-8” stainless steel grades
- Excellent corrosion resistance in industrial environments
- Supports short, spray, and pulsed arc processes
- Clean arc characteristics with smooth wire feeding
- Ideal for pipes, boilers, and stainless fabrication
Industries
- Food and Beverage Processing Equipment
- Chemical and Pharmaceutical Plants
- Piping and Boiler Fabrication
- Stainless Steel Structures
- Industrial Manufacturing and Maintenance
Processes
- MIG welding with Ar+2%O₂ or Ar+2–3%CO₂
- Suitable for AISI 301, 302, 304, 304L, 308, 308L
- Short arc for positional and thin-gauge welding
- Pulsed/spray arc for high deposition applications
Additional Details
- Suitable for welding 18Cr/8Ni “18-8” steels
- Optimised for Argon-based shielding gases with O₂ or CO₂
- Excellent creep resistance and ferrite control (5–10%)
- Recommended shielding gas: 98% Ar + 2% O₂ or Ar + 2–3% CO₂
- Welding position: All positions
- Current: DC (+)
- Storage: Keep dry and avoid condensation
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P |
| 0.30 max | 1.60 – 2.50 | 0.65 – 1.00 | 19.50 – 22.00 | 9.00 – 11.00 | 0.25 max | 0.25 max | 0.03 max | 0.03 max |
Typical All-Weld Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation A5 (%) |
| ≥ 350 | ≥ 550 | ≥ 35% |
Recommended Welding Data
| Shielding Gas | Unit | 0.8 | 1.0 | 1.2 |
| Ar + 1–2% CO₂ | Amp | 40-120 | 80-160 | 100-210 |
| Volt | 15-20 | 16-22 | 17-22 | |
| Ar + 1–2% O₂ | Amp | 160-210 | 180-280 | 200-300 |
| Volt | 24-28 | 24-30 | 24-30 |
