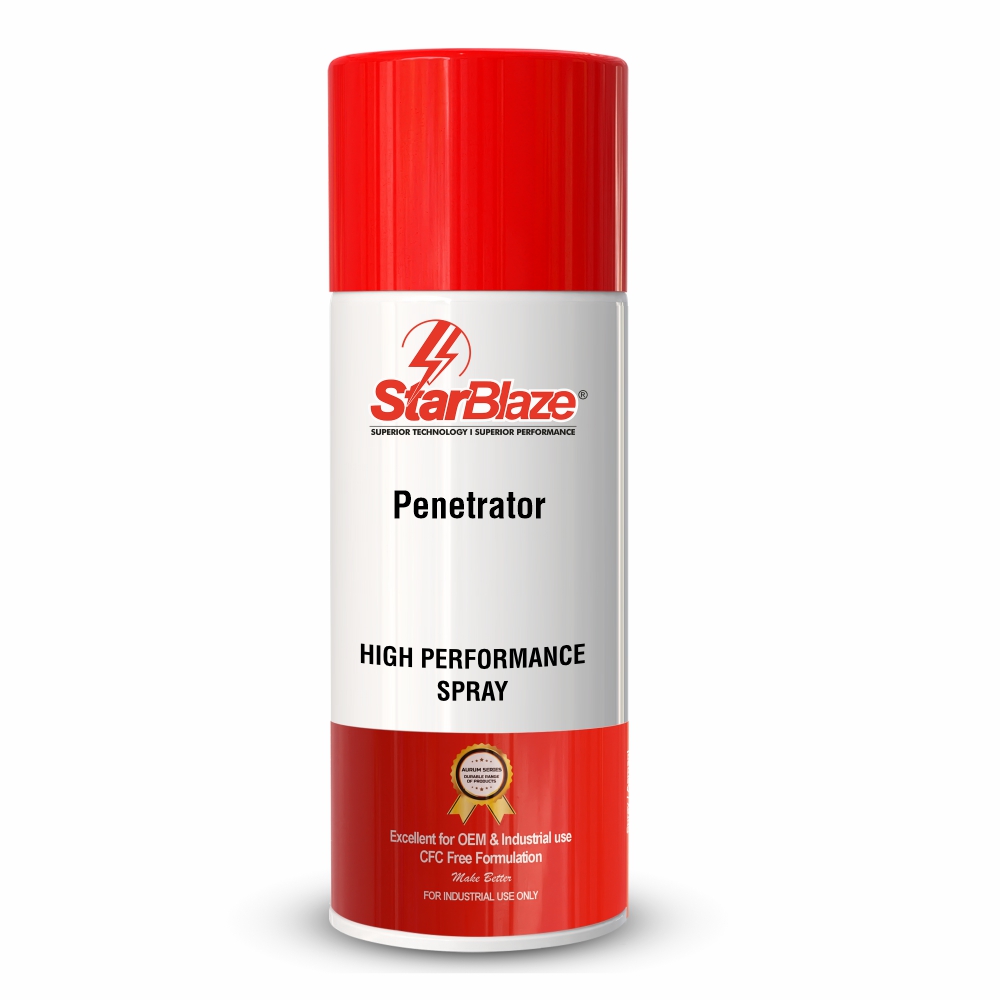

StarBlaze Penetrator

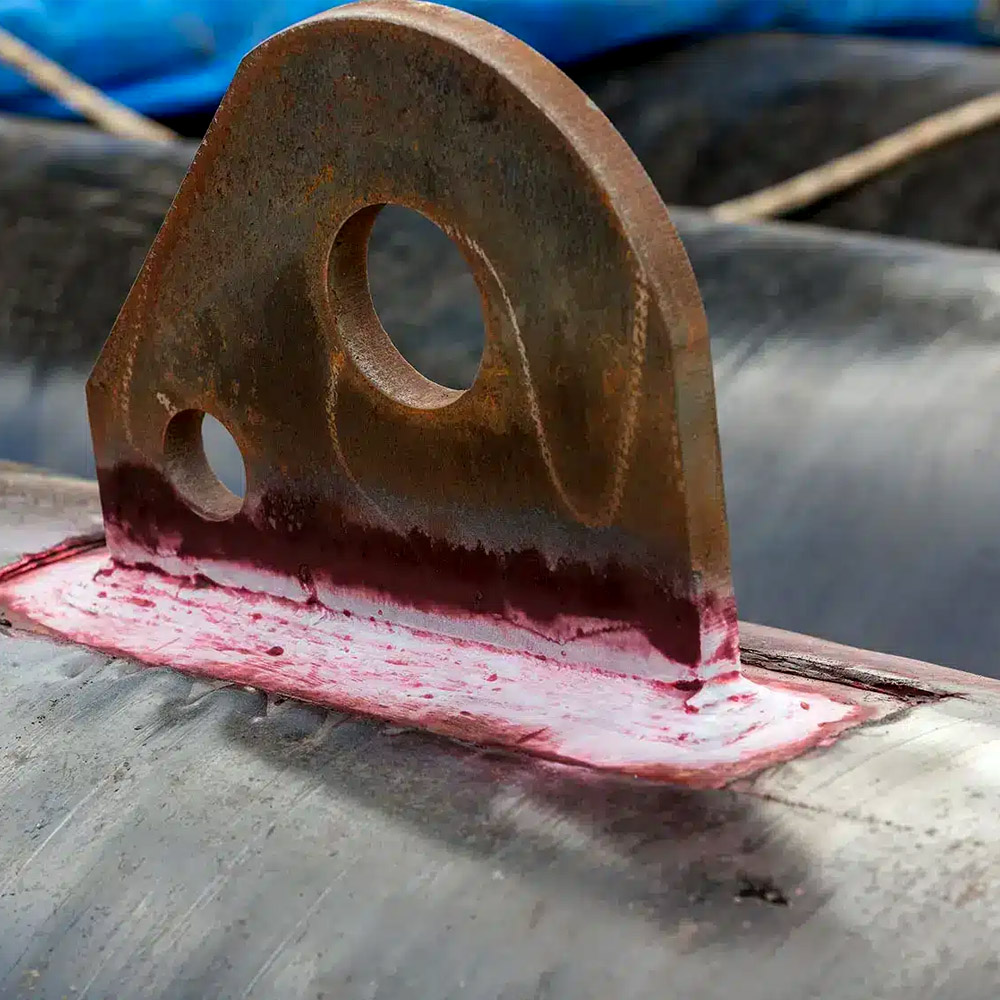

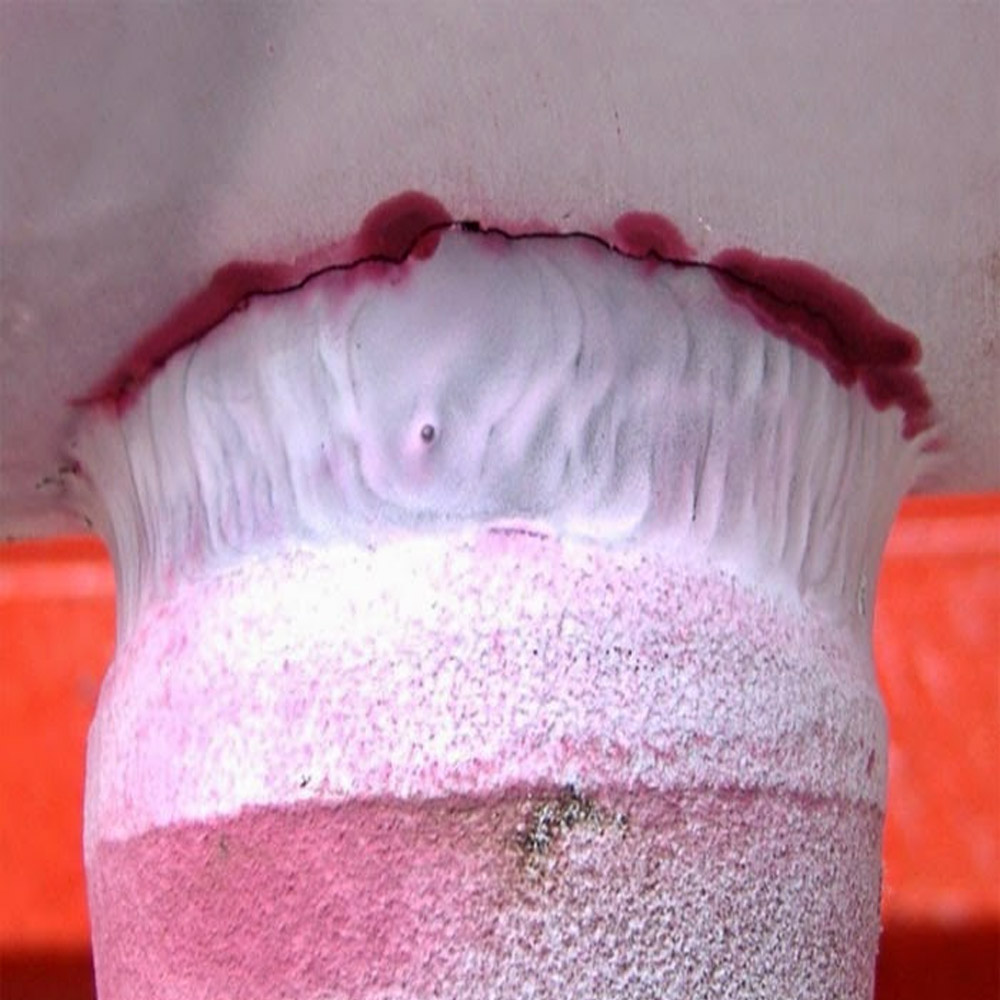

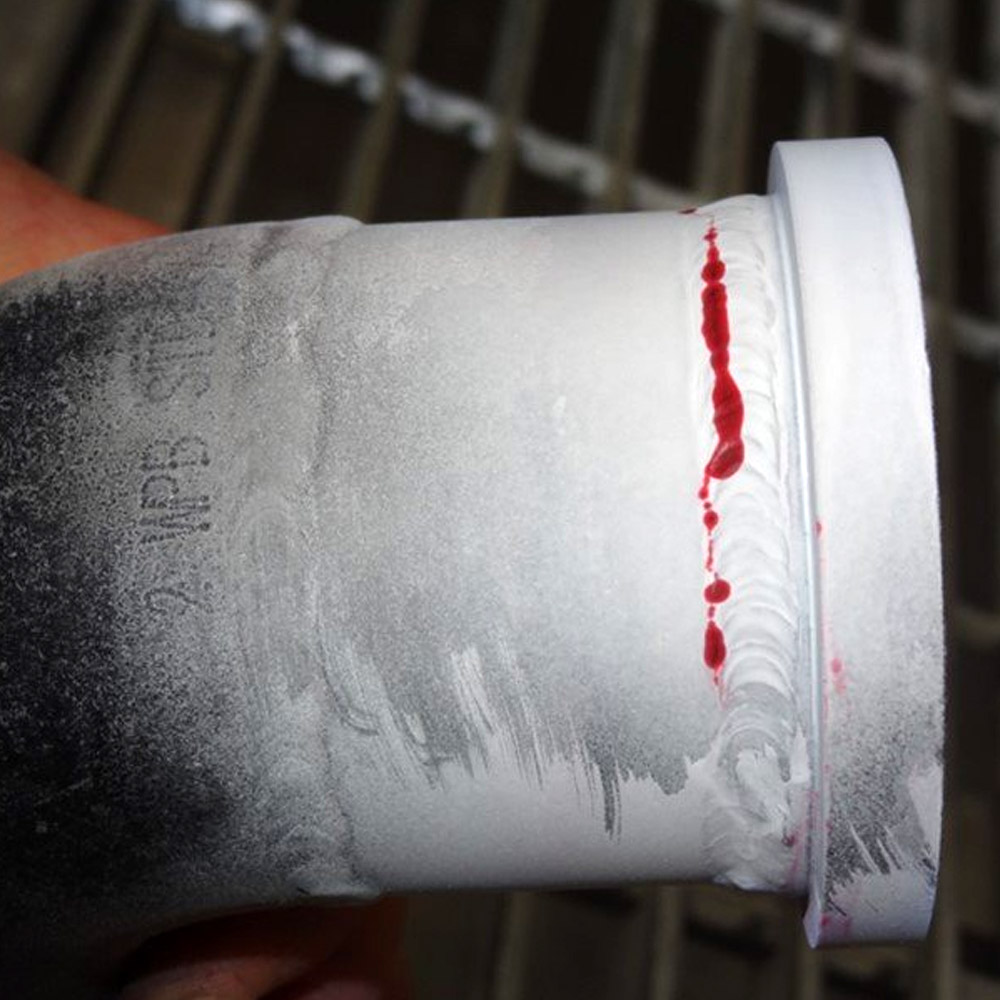

STARBLAZE Penetrator is engineered to locate surface discontinuities or flaws in metals, plastics, ceramics, and other non-porous materials. It highlights cracks, seams, porosity, laps, laminations, and cold shuts with vivid red dye. The formulation ensures excellent capillary action, penetrating defects to provide clear, reliable visual indications. Its low viscosity and specific gravity (<1) enable rapid coverage and efficient testing. The product meets MIL-I-25135, MILSTD 271, and IS:3658–1988 standards, making it suitable for critical inspection applications across industries.
Available Packs: 330 ml, 400 ml, 500 ml Aerosol Cans
Key Features
- Detects a wide spectrum of flaw sizes, from 1 micron to 30 microns depth.
- Superior capillary action ensuring rapid and thorough flaw penetration.
- Non-toxic, non-corrosive formulation free from halides and sulfides.
- CFC-free for reduced environmental impact.
- Conforms to MIL-I-25135, MILSTD 271, IS:3658 standards.
Industries
- Railways & Metro Infrastructure
- Oil & Gas
- Power Generation
- Aerospace & Defence Components
- Heavy Engineering & Fabrication
- Foundries and Forging Units
- Shipbuilding & Offshore Maintenance
Processes
- Liquid Dye Penetrant Inspection (DPI) of welds, castings, and machined parts
- Non-destructive testing (NDT) for preventive maintenance
- Stress corrosion and fatigue crack evaluation
- Flaw detection in critical assemblies
