StarBlaze Prime 6013SS
AWS A5.1: E6013 | DIN EN ISO 2560-A: E 42 0 RR 12 | IS 814: ERR 4222X
Touch Arc Electrode, Radiographic Weld Quality, Thick Fillet Specialist
Heavy-coated rutile electrode engineered for high-speed structural welding and excellent operability in thick joint sections. Designed for smooth fusion, touch-start arc initiation, and effortless slag release. Ideal for fillet welds where fast deposition and clean finish are critical.

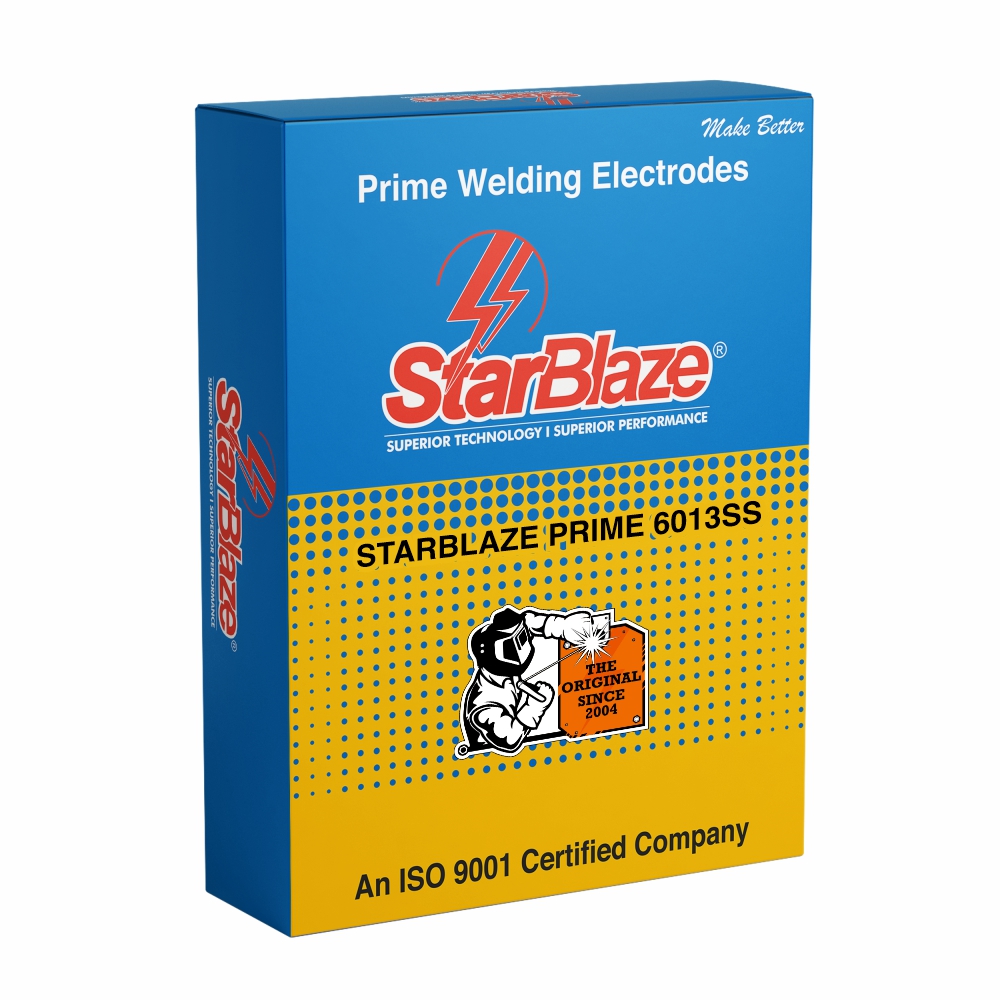

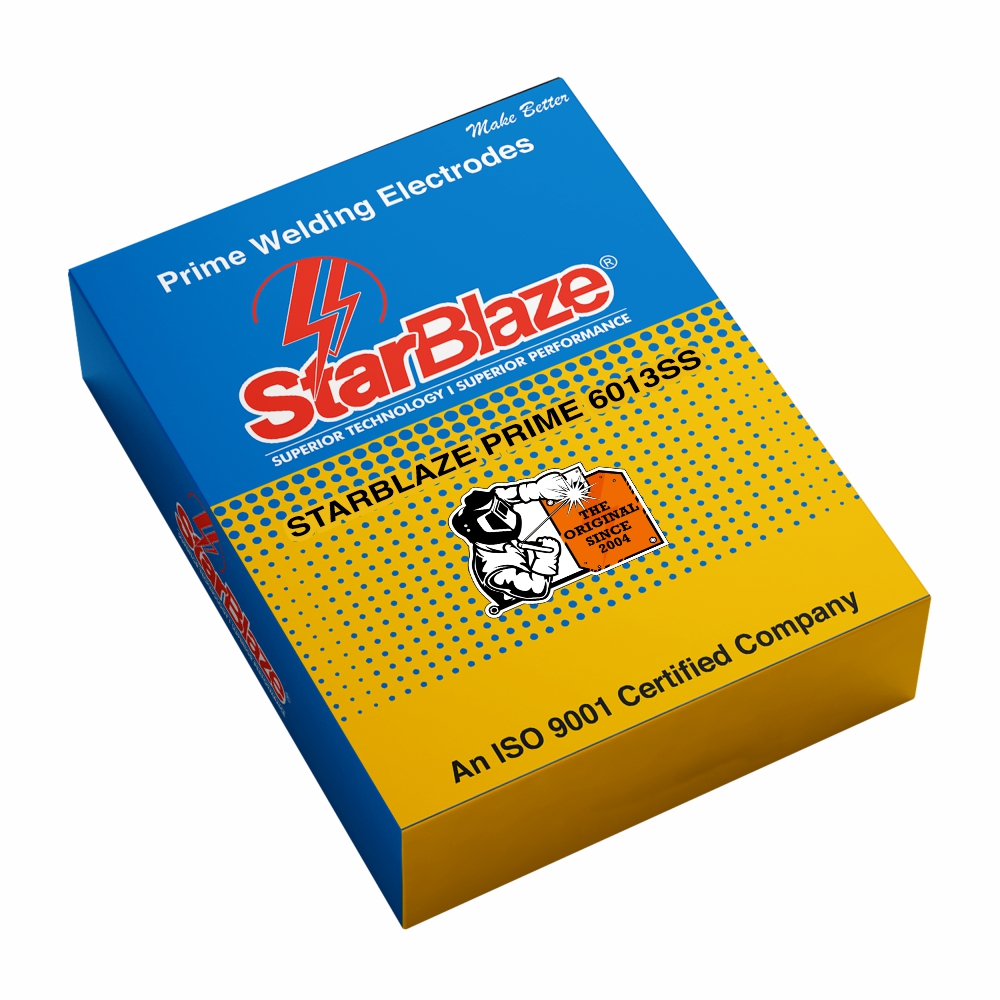

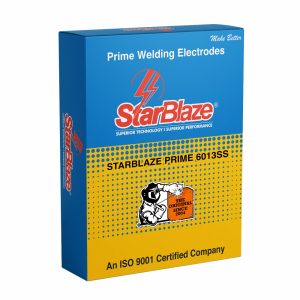

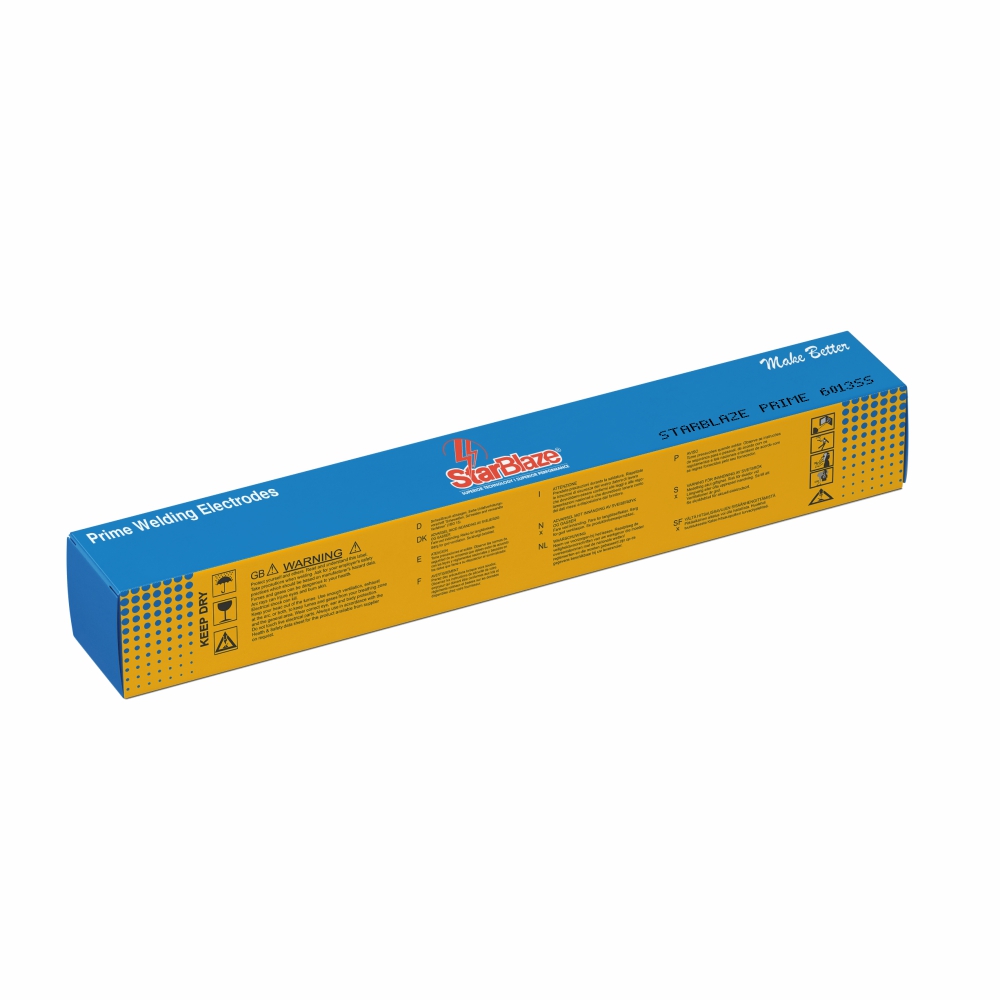

Available Packs:
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 450 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
Key Features
- Exceptional ease of arc striking and restriking in repetitive weld cycles
- Highly stable arc for touch welding and high-current operations
- Produces smooth, undercut-free fillet welds with excellent edge blending\
- Minimal post-weld cleaning due to self-releasing slag
- Suited for multi-pass work on medium- to thick-section mild steels
Industries
- Structural steel and fabrication shops
- High-speed production welding
- Pressure pipe fittings and medium-section joints
- Equipment chassis and industrial frame welding
- Civil infrastructure and general construction
Processes
- Manual Metal Arc Welding (MMA / SMAW)
- Compatible with AC and DC power sources
- Designed for thick-section fillet welding
- Touch arc and high current welding convenience
- Smooth vertical-up and positional weld handling
- Suitable for clean radiographic finish requirements
Additional Details
- Use case: Smooth bead welding for structural fabrication and clean finish applications
- Handling: Use from sealed packs; no redrying necessary under standard storage
- Storage: Keep in dry, ambient warehouse conditions with moderate humidity control
- Limitations: Not recommended for critical code welding or service environments requiring low spatter tolerance
Product Details
Typical Weld Metal Chemical Composition (%)
| C | Si | Mn | P | S |
| 0.08 | 0.35 | 0.45 | 0.03 | 0.03 |
Typical Mechanical Properties (All Weld Metal)
| Heat Treatment | Tensile Strength
Rm (N/mm2) |
Yield Strength
Rp(N/mm2) |
Elongation
A5 (%) |
Charpy Impact Value
(ISO-V J 0°C) |
| As Welded | 480-540 | ≥ 420 | ≥ 24 | ≥ 60 |
Recommended Welding Parameters
| Diameter (mm) | Amperage Range (A) |
| 2.50 | 60-90 |
| 3.15 | 100-140 |
| 3.20 | 100-140 |
| 4.00 | 140-190 |
| 5.00 | 190-240 |
