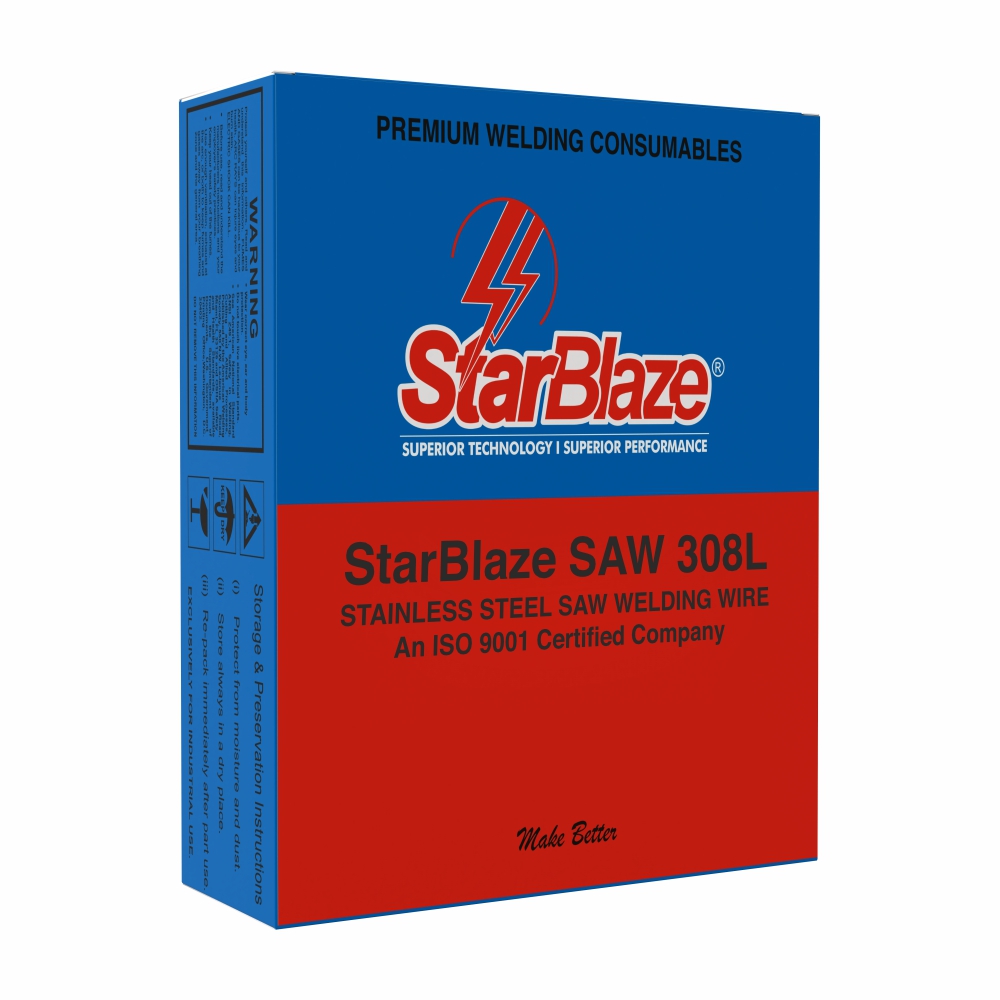

StarBlaze SAW 308L
AWS A5.9: ER 308L | EN 12072: S 19 9 L | DIN 8556: X2 CrNi 19.9
StarBlaze SAW 308L is a low-carbon stainless steel welding wire designed for Submerged Arc Welding (SAW) of austenitic stainless steels such as AISI 304, 304L, 308, 308L, 321, and 347. With a 20Cr/10Ni composition, it offers excellent corrosion resistance and mechanical strength. The wire is coated with a fine anti-spatter reagent film made from dichloromethane and methylene chloride to ensure smooth feedability and clean welds. Ideal for applications in food processing, chemical industries, boilers, tubes, and cryogenic structures.
- Diameters: 2.00 mm, 2.40 mm, 3.20 mm, 4.00 mm
- Pack size: 25 kg / 60 lbs
Key Features
- Extra-low carbon for resistance to intergranular corrosion
- Excellent weldability for 18Cr/8Ni austenitic stainless steels
- Consistent mechanical strength and elongation
- Precision layer-wound for smooth wire feed and arc stability
- Specialised anti-spatter reagent coating for cleaner welds
- Suitable for cryogenic and corrosive service applications
- Works with a wide range of stainless welding fluxes
Industries
- Food and Beverage Equipment
- Chemical and Petrochemical Processing
- Boiler and Heat Exchanger Manufacturing
- Stainless Steel Pipes, Tubes, and Tanks
- Cryogenic Equipment and Fabrication
Processes
- Submerged Arc Welding (SAW) with compatible stainless flux
- Welding of AISI 304, 304L, 308, 308L, 321, and 347
- Used in structural fabrication and pressure vessels
- Flat and horizontal weld positions (standard SAW)
Additional Details
- Suitable for welding austenitic stainless steels in combination with SAW flux
- Excellent resistance to creep, intergranular corrosion, and cracking
- Controlled ferrite content between 4–8%
- Anti-spatter reagent coated (di-chloromethane + methylene chloride)
- Welding current: DC (+)
- Corrosion Resistance: Equivalent to ER308L; performs well in oxidising and cold dilute reducing acid environments
- Materials to be Welded:
- 304, 304L, 308, 308L, 321, 347
- 1.4306, 1.4301, 1.4311, 1.4541, 1.4550, 1.4552
- Storage: Keep dry; avoid condensation
Product Details
Typical Chemical Composition (%)
| C | Mn | Si | Cr | Ni | Mo | Cu | S | P |
| 0.03 max | 1.50 – 2.20 | 0.30 – 0.65 | 19.50 – 22.00 | 9.00 – 11.00 | 0.75 max | 0.25 max | 0.03 max | 0.03 max |
Typical All-Weld Mechanical Properties
| Yield Strength (N/mm²) | Tensile Strength (N/mm²) | Elongation A5 (%) | Impact Energy ISO-V(J) 20°C |
| ≥ 350 | ≥ 550 | ≥ 35% | ≥ 47 |
Recommended Welding Data
| Diameter (mm) | 2.00 | 2.40 | 3.20 | 4.00 |
| Current (A) | 190 – 500 | 300 – 500 | 300 – 500 | 300 – 500 |
| Voltage (V) | 24 – 30 | 26 – 30 | 28 – 30 | 28 – 32 |
