Showing all 16 results
-

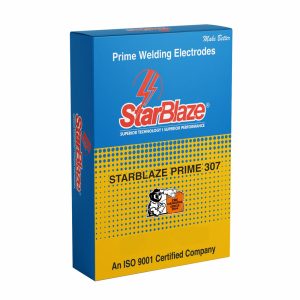

AWS A5.4: E307-16 | DIN EN ISO 3581-A: E 18 8 Mn Mo R 12 | DIN EN 1600: E 18 8 Mn Mo R 12 | Werkstoff Nr: 1.4370 Cushion Layer Welding, Easy Slag Removal, High Impact Strength Summary: Non-magnetic rutile-coated stainless electrode designed for joining and surfacing of manganese steels (up to 14% Mn), high-sulphur/phosphorus steels, and tool or spring steels. Ideal for wear-affected parts and cushioning before hardfacing. Offers excellent bead appearance, low spatter, and strong impact resistance. -
AWS A5.4: E307-26 | DIN EN ISO 3581-A: E 18 9 Mn Mo R 53 | Werkstoff Nr: 1.4370 Low Spatter, High Strength, Buffer-Layer Capable Stainless Electrode Summary: Rutile heavy-coated 19/9 Mn stainless steel electrode for joining and overlaying manganese steels, carbon steels, and high-sulphur/high-phosphorus alloys. Offers stable arc, low spatter, and excellent slag removal. Suitable for buffer layers and joining dissimilar metals in demanding structural applications. -
AWS A5.4: E308-16 | DIN EN ISO 3581-A: E 19 9 R 12 | DIN EN 1600: E 19 9 R 12 | Werkstoff Nr: 1.4316 P Crack-Resistant, Low Spatter, High-Temperature Stability Summary: Rutile-coated stainless steel electrode with ~5% ferrite content for welding non-stabilised 18/8 austenitic steels. Offers excellent resistance to cracking, corrosion, and scaling up to 800°C. Produces spatter-free fusion, smooth bead appearance, and easy slag removal - ideal for boilers, piping systems, and reactors.
-
AWS A5.4: E308H-16 | DIN EN ISO 3581-A: E 19 9 R 12 | DIN EN 1600: E 19 9 R 12 | Werkstoff Nr: 1.4948 Low Moisture Pickup, Soft Fusion, High Temperature Strength Rutile semi-basic stainless steel electrode with ~3–8% ferrite for welding 308H type stainless steels used in high-temperature service. Combines low moisture absorption with smooth bead appearance and spatter-free fusion. Enhanced carbon content improves strength and creep resistance in thermal pipelines and petrochemical units. Available Packs : 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E308L-16 | DIN EN ISO 3581-A: E 19 9 LR 12 | DIN EN 1600: E 19 9 LR 12 | Werkstoff Nr: 1.4316 Extra Low Carbon, 800°C Scaling Resistance, Smooth Arc and Finish Extra low carbon rutile-basic stainless electrode with ~8% ferrite for corrosion and crack resistance in 18/8 stainless steels. Offers soft arc behaviour with minimal spatter, clean slag release, and excellent bead quality. Effective in operating temperatures from –120°C to +350°C with scaling resistance up to 800°C. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E308L-15 | DIN EN ISO 3581-A: E 19 9 LB 22 | DIN EN 1600: E 19 9 LB 22 | Werkstoff Nr: 1.4316 Cryogenic-Grade Strength, IGC-Compliant, Low Hydrogen Weldability Basic-coated stainless electrode with low hydrogen content for welding 304L and other austenitic stainless grades, offering excellent mechanical performance down to –196°C. Meets IGC Practice E and ASME Section II Part C standards. Designed for precise positional welding with smooth slag detachment and low spatter. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E308L-17 | DIN EN ISO 3581-A: E 19 9 LR 32 | DIN EN 1600: E 19 9 LR 32 | Werkstoff Nr: 1.4316 Low Carbon Core, Corrosion-Resistant, Smooth Bead Appearance Low carbon rutile-silica coated stainless electrode with 6–8% ferrite for welding 18/8-type austenitic steels. Delivers soft fusion with low moisture absorption and minimal spatter. Offers excellent slag detachability and smooth weld finish—ideal for service conditions from –120°C to +350°C in tanks, pipes, and heat exchangers. Available Packs : 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E309-16 | DIN EN ISO 3581-A: E 23 12 R 12 | DIN EN 1600: E 23 12 R 12 | Werkstoff Nr: 1.4332 Buffer-Ready, Smooth Arc, Dissimilar and Cladding Specialist Rutile-basic 23Cr–12Ni electrode with approx. 15% ferrite for welding dissimilar stainless to low alloyed steels. Suitable for buffer layers before hardfacing and cladding on 18/8 type substrates. Produces smooth, spatter-free welds with easy slag removal and stable arc re-striking, even in multi-pass repair operations. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E309Nb-16 | DIN EN ISO 3581-A: E 23 12 Nb R 12 High Temp Resistant, Smooth Arc, Dissimilar Metal Compatible Rutile-basic coated stainless electrode with 23Cr–12Ni–0.7Nb alloy system, ideal for welding AISI 309Cb steels, claddings, and joining dissimilar metals. Niobium content improves intergranular corrosion resistance and mechanical performance at high temperature (up to +1000°C). Delivers finely rippled bead, spatter-free arc, and self-releasing slag. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E309-15 | DIN EN ISO 3581-A: E 23 12 B 22 | Werkstoff Nr: 1.4332 Buffer-Layer Ready, Smooth Fusion, Ideal for Carbon to Stainless Welding Basic-coated stainless steel electrode with ~15% ferrite, designed for welding dissimilar metals and overlaying high-temperature steels. Suitable for buffer layers before hardfacing and 18/8 cladding. Delivers smooth fusion, easy slag release, and strong impact resistance. Trusted for repair, civil engineering, and fabrication applications. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E309H-16 | DIN EN ISO 3581-A: E 23 12 R 12 | DIN EN 1600: E 23 12 R 12 | Werkstoff Nr: 1.4833 12% Ferrite, High Temp Durable, Excellent Cladding and Joint Finish Rutile-basic electrode with 12% ferrite stainless deposit, designed for welding dissimilar metals and elevated temperature service. Suitable for buffer layers, 18/8 cladding, and joining stainless to low alloyed steels. Offers spatter-free arc, smooth bead finish, and reliable restrike for critical repair and structural jobs. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E309L-16 | DIN EN ISO 3581-A: E 23 12 LR 12 | DIN EN 1600: E 23 12 LR 12 | Werkstoff Nr: 1.4332 LMA Coating, Spatter-Free, For Dissimilar Joints & Buffer Layers Low carbon rutile-basic electrode with ~15% ferrite, formulated for dissimilar metal welding and high-temperature service. Produces clean, soft-fused welds with low moisture absorption and minimal spatter. Ideal for buffer layer deposition, 18/8 type cladding, and stainless-to-low alloy steel joints. Available Packs :
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E309L-15 | DIN EN 1600: E 23 12 L B 12 | DIN 8556: E 23 12 LB 23 | Werkstoff Nr: 1.4332 Low Carbon, Buffer-Layer Ready, Excellent Arc with Ferrite Balance Low carbon, basic-coated stainless electrode with ~15% ferrite for welding dissimilar metals (carbon to stainless), high-temperature steels, and as a buffer layer before hardfacing. Offers smooth fusion, refined bead appearance, and reliable slag release for civil engineering, cladding, and structural repairs. Available Packs:
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 350 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.1: E 6013 | DIN EN ISO 2560-A: E 38 0 RC 11 | IS 814: ER 4211X Low Spatter, Smooth Arc, Radiographic Quality Welds Rutile-type mild steel electrode for general-purpose welding across a wide range of structural and pressure applications. Produces fine-rippled welds with low spatter, easy slag removal, and consistent arc performance. Ideal for fabrication, shipbuilding, tanks, and pipelines.
-
AWS A5.1: E6013 | DIN EN ISO 2560-A: E 42 0 RR 12 | IS 814: ERR 4222X Touch Arc Electrode, Radiographic Weld Quality, Thick Fillet Specialist Heavy-coated rutile electrode engineered for high-speed structural welding and excellent operability in thick joint sections. Designed for smooth fusion, touch-start arc initiation, and effortless slag release. Ideal for fillet welds where fast deposition and clean finish are critical. Available Packs:
- 2.50 mm x 350 mm – 2.5 kg pouch
- 3.15 mm x 450 mm – 5 kg box
- 4.00 mm x 450 mm – 5 kg box
- 20 kg master carton
- Custom packaging available on request
-
AWS A5.4: E308L-16 | DIN 8556: E19 9 LR 23 | DIN EN 1600: E19 9 L R 32
Low Carbon. Crack-Resistant. Versatile.
A rutile-basic coated stainless steel electrode, E308L-16 is designed for welding austenitic 18/8 Cr-Ni stainless steels. With a low carbon core wire (308LER) and optimized ferrite (~8%), it offers maximum crack resistance, smooth arc characteristics, and superior corrosion resistance. The electrode produces soft fusion with minimal spatter, excellent slag detachability, and aesthetically clean weld beads. Suitable for use at service temperatures from -120°C to +350°C.
