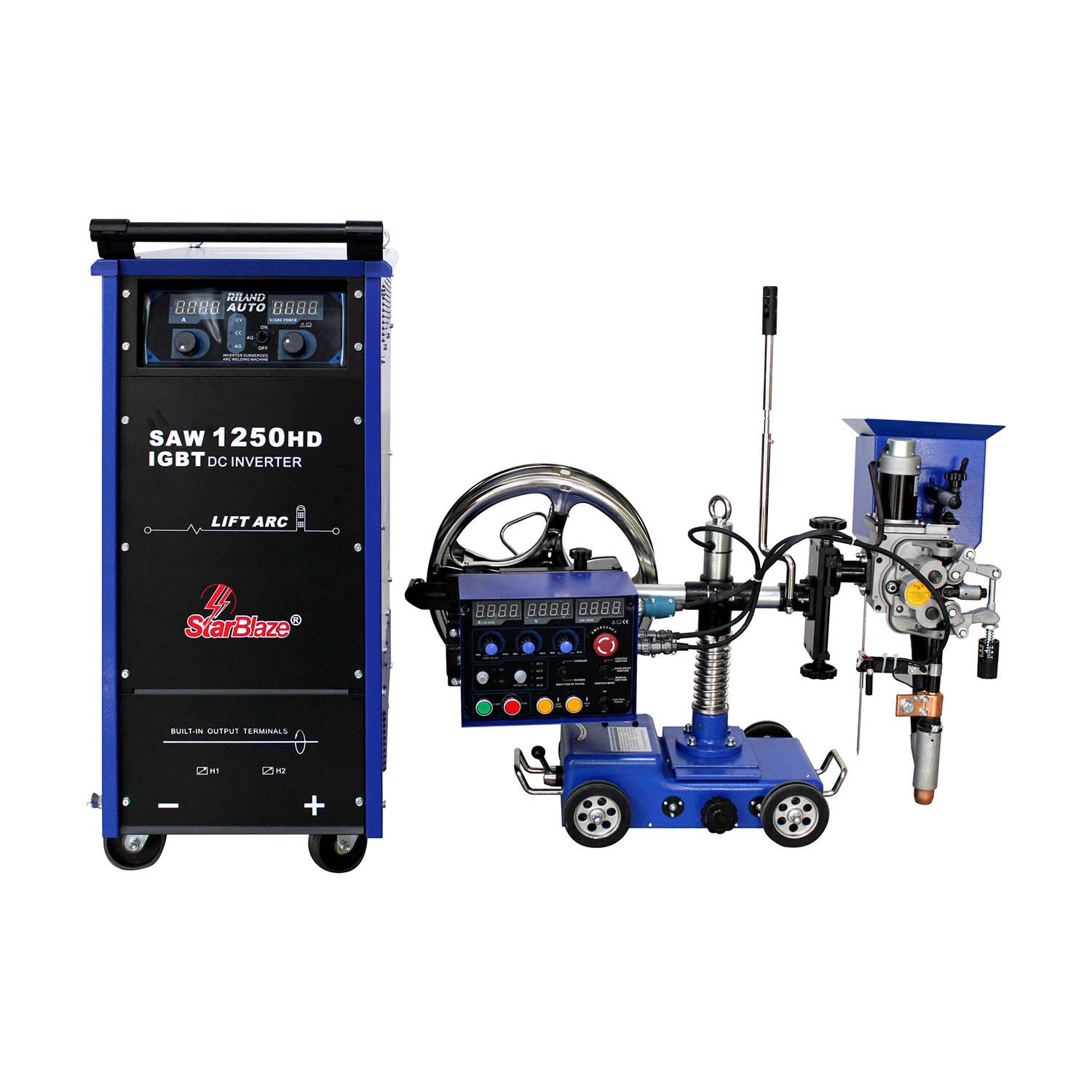

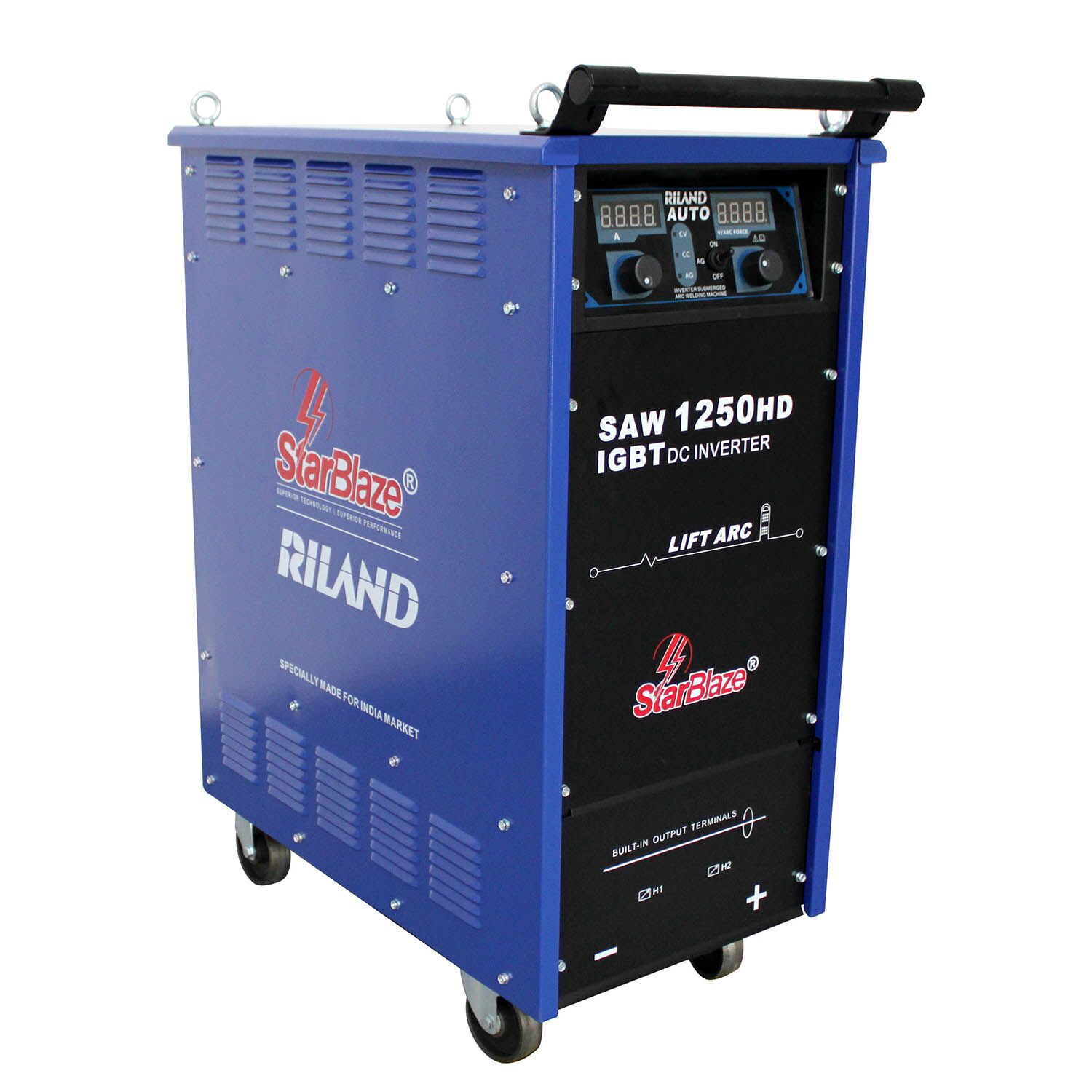

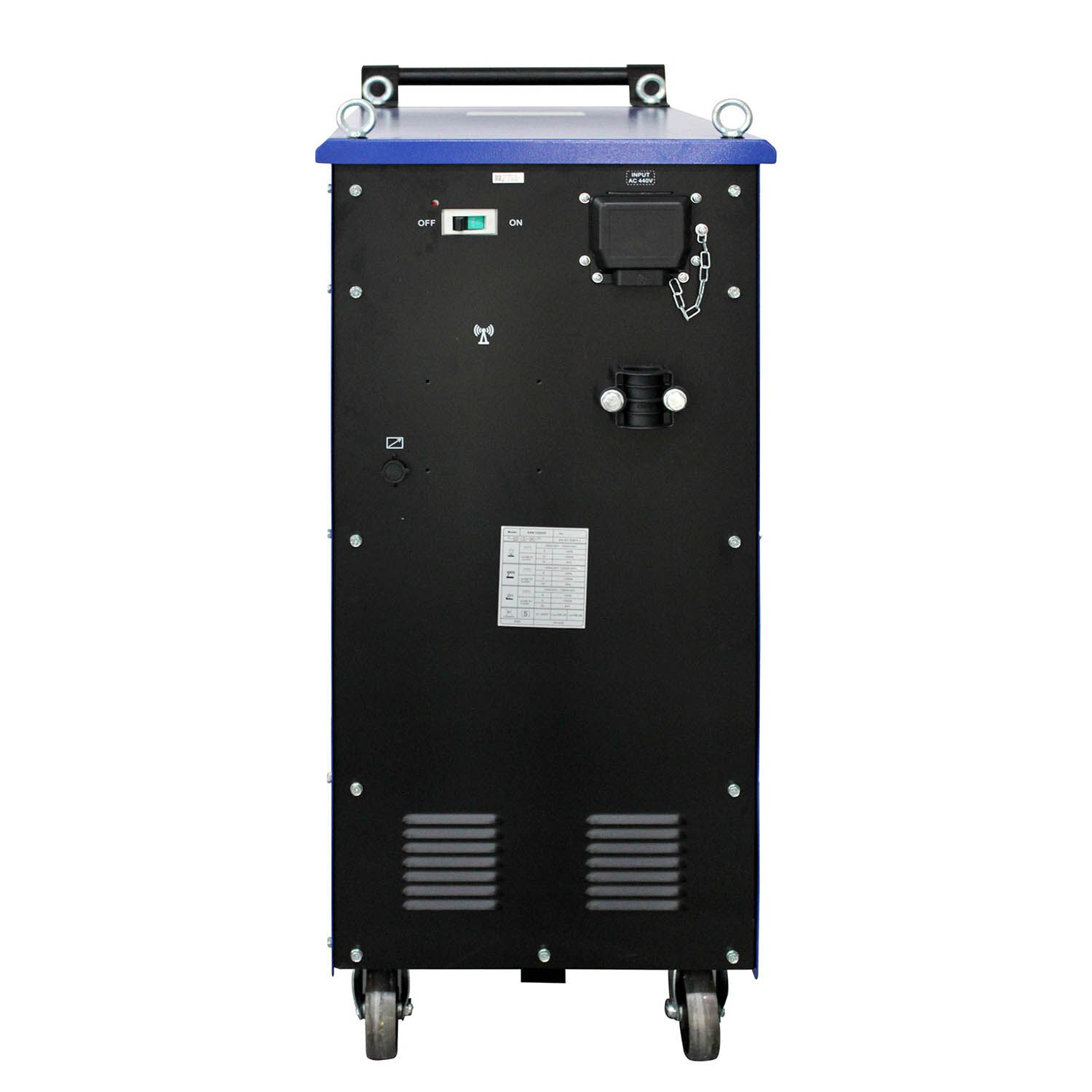

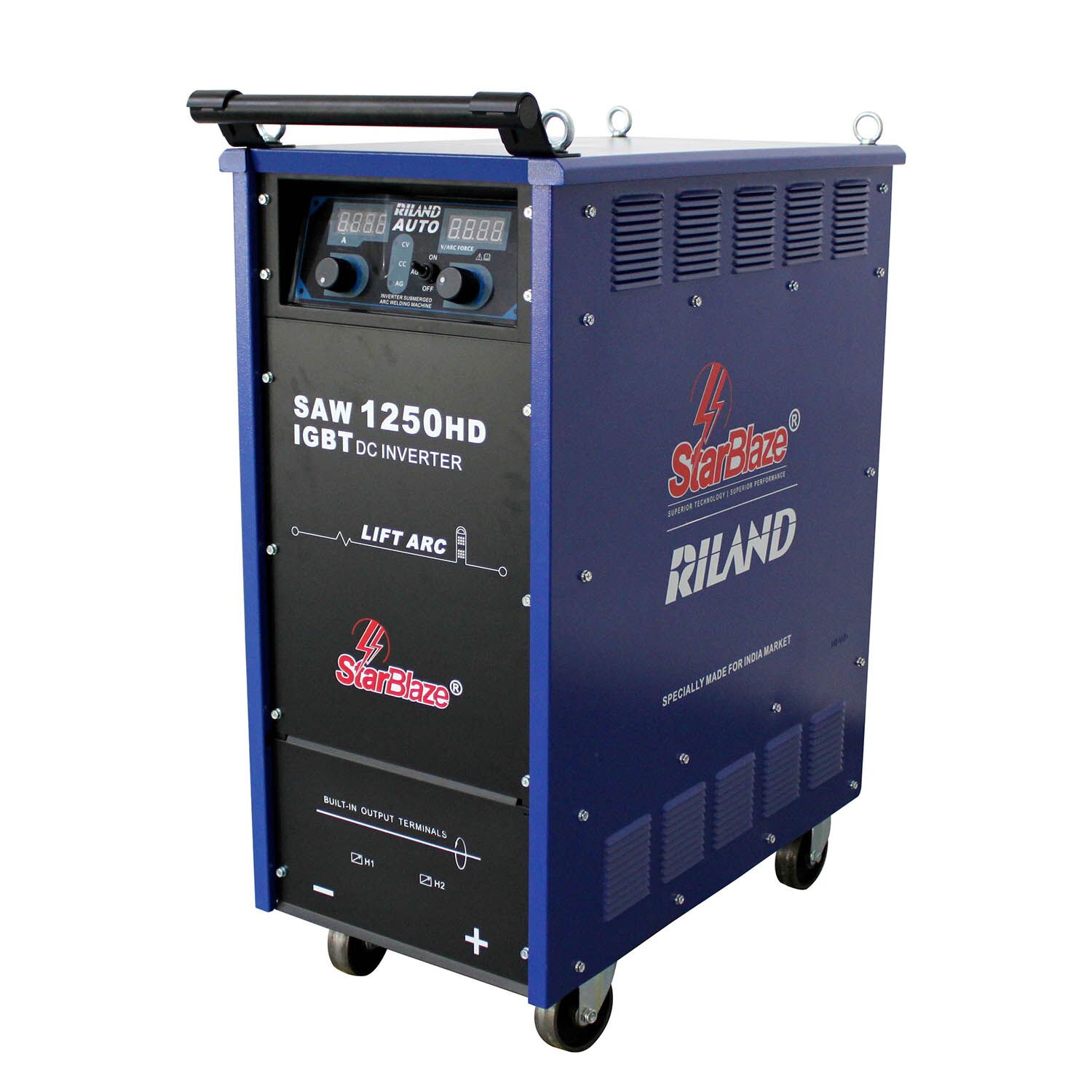

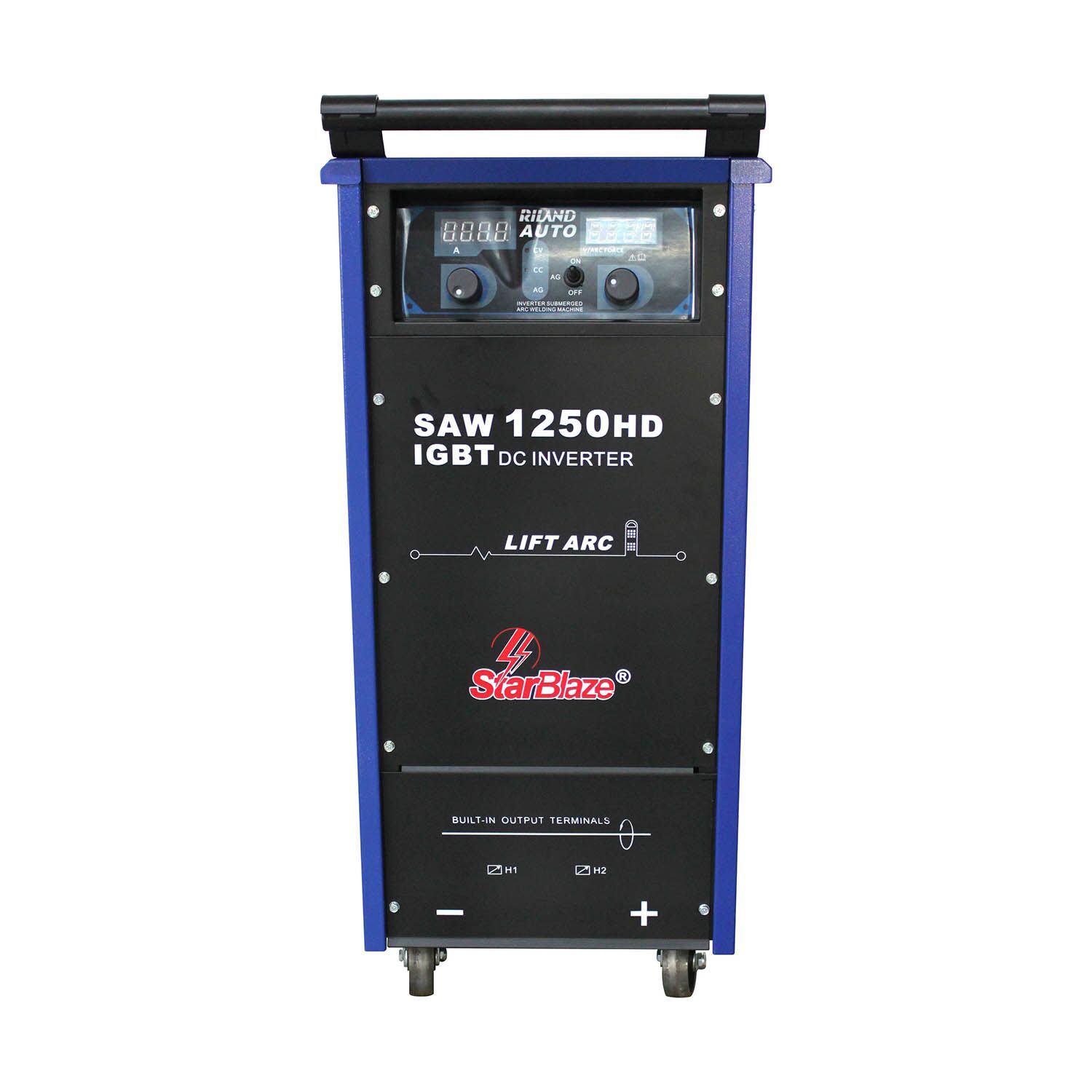

The SAW 1250HD is a full-digital, high-efficiency Submerged Arc Welding machine designed for the toughest industrial applications. Backed by advanced IGBT inverter technology and a robust duty cycle of 100% at 1250A, this machine is built to deliver non-stop performance in demanding environments. With both CC and CV modes, multi-wire compatibility, intelligent energy-saving features, and a simplified control interface, the SAW 1250HD is the welding solution trusted by heavy industries for high-quality, high-speed welds.

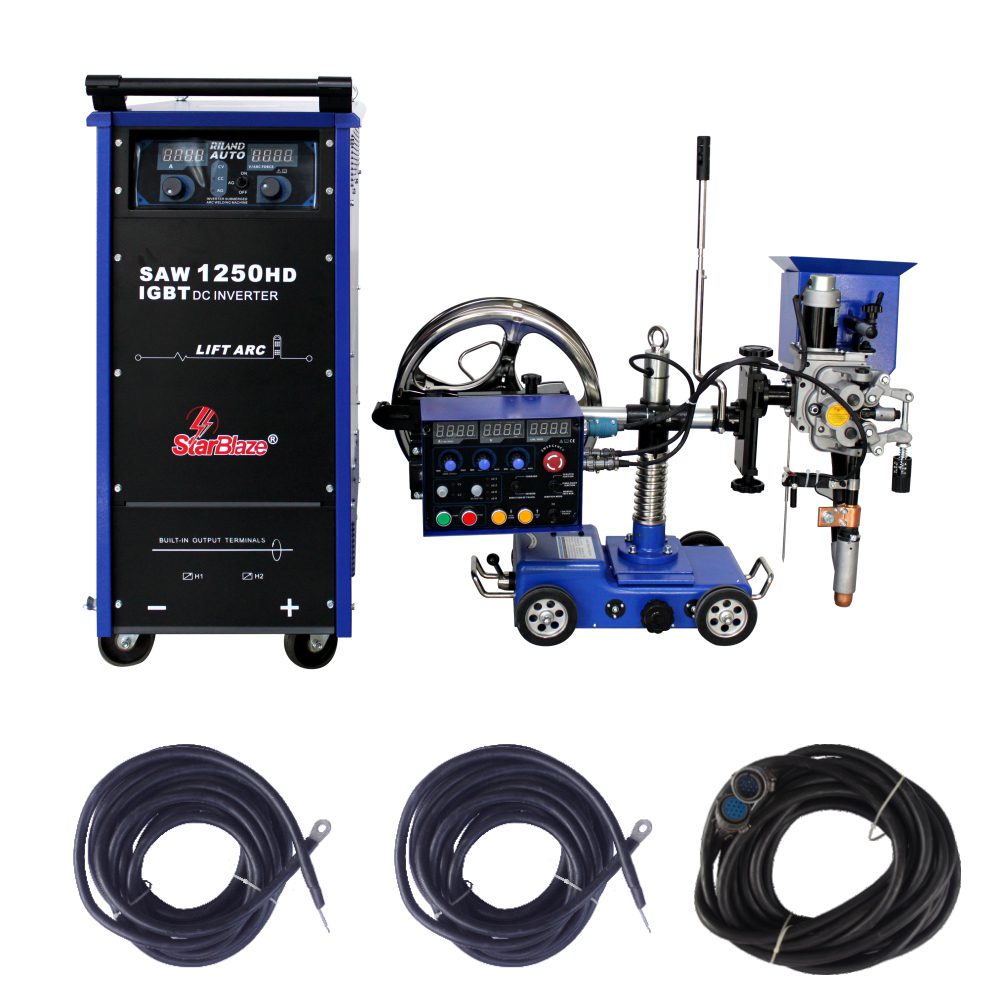

Standard Package Includes
1x Inverter Power Source with Control Box

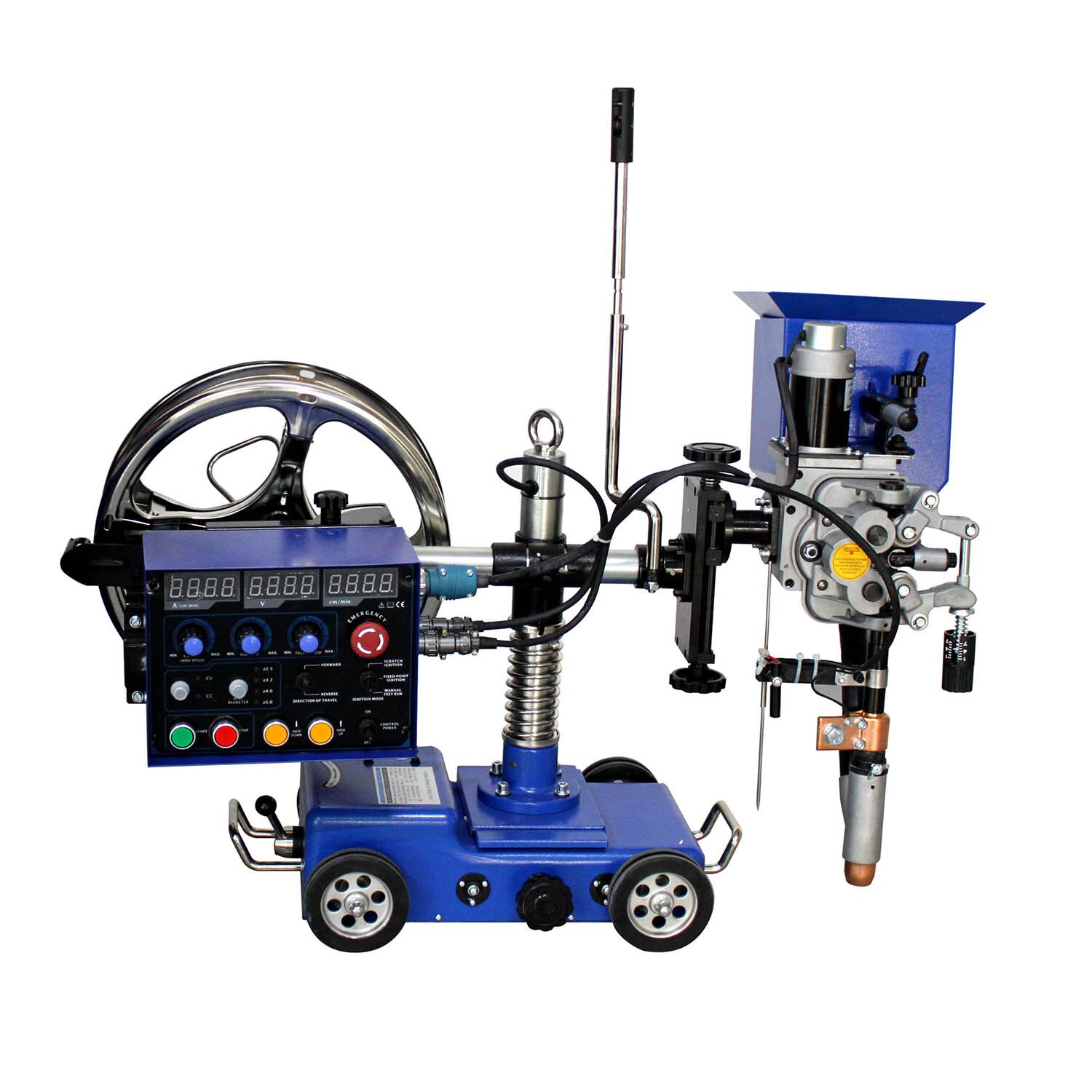

1x Welding Tractor with Control Box
2x Earth Clamps with 6m Cable
2x Welding Power Cables – 10m
1x Signal Control Cable – 10m
2x Track Rails for Tractor Movement
Product Details
Parameter | Specification |
Rated Input Voltage | 415V ±15%, 3 Phase |
Frequency | 50/60 Hz |
Rated Input Capacity | 63.01 KVA |
Rated Input Current | 82.6 A |
Welding Output Voltage | 92 V |
No-Load Loss | 200 W |
Current Adjusting Range | 250 – 1250 A |
Voltage Adjusting Range | 20 – 44 V |
Efficiency | 85% |
Insulation Class | F |
Protection Degree | IP23 |
Overall Dimensions (L×W×H) | 825 × 451 × 1040 mm |
Weight | 123.4 kg |
Related Products
- The TIG 315P AC/DC is a professional-grade TIG welding machine designed for performance and precision in industrial environments. With dual functionality (HF TIG and MMA), it enables high-quality welds on a wide range of metals, including aluminum and stainless steel. Built with robust components and a tri-proof air duct system, it ensures long-term reliability in demanding conditions. The machine offers full control over welding parameters—pulse settings, current levels, slopes, and gas post-flow—giving professionals the flexibility to fine-tune every weld.
-

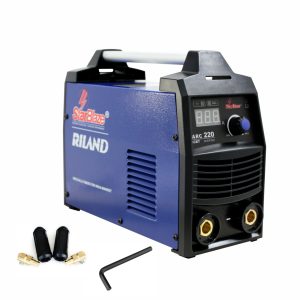

The Next-Gen Cost-Effective MMA Welding Machine
