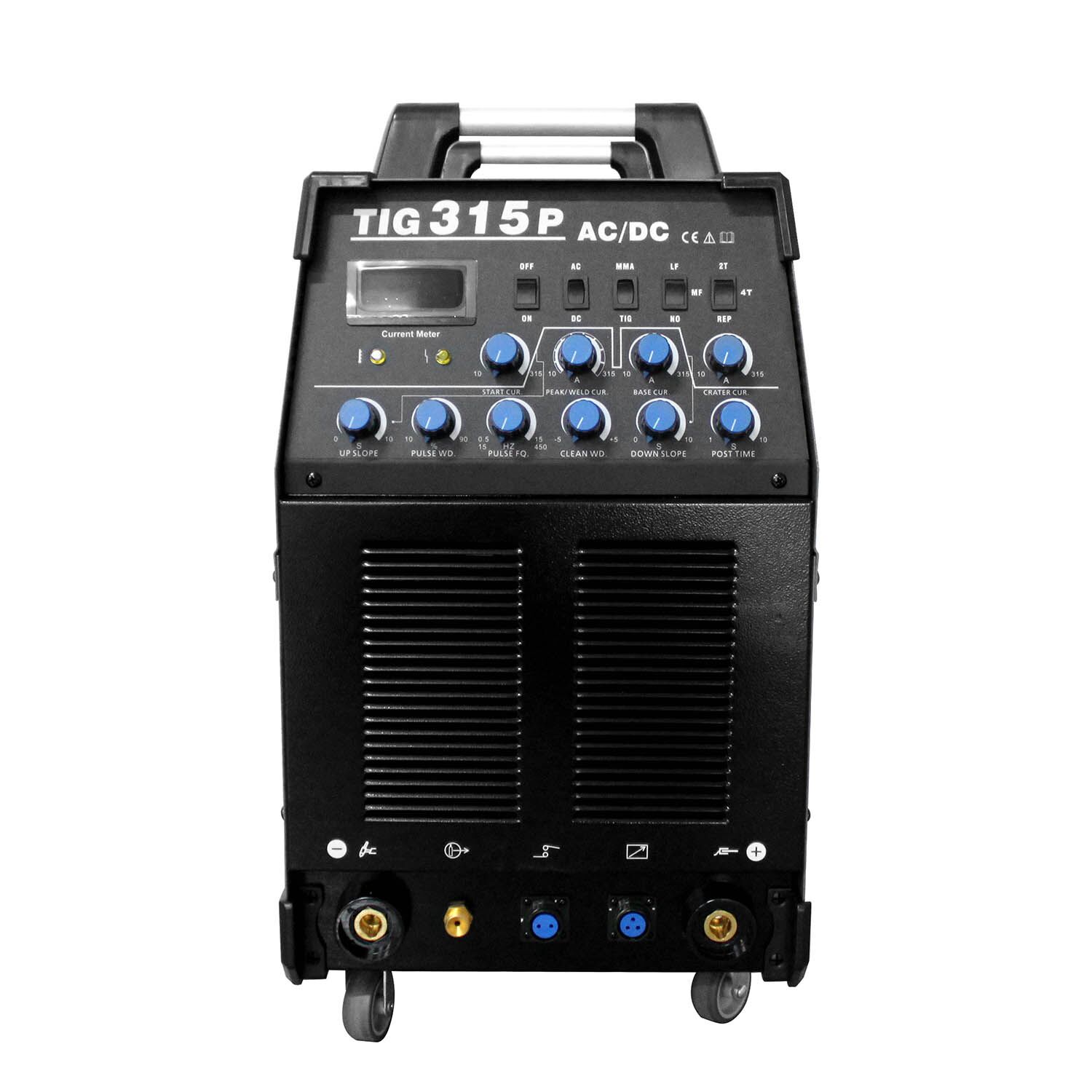

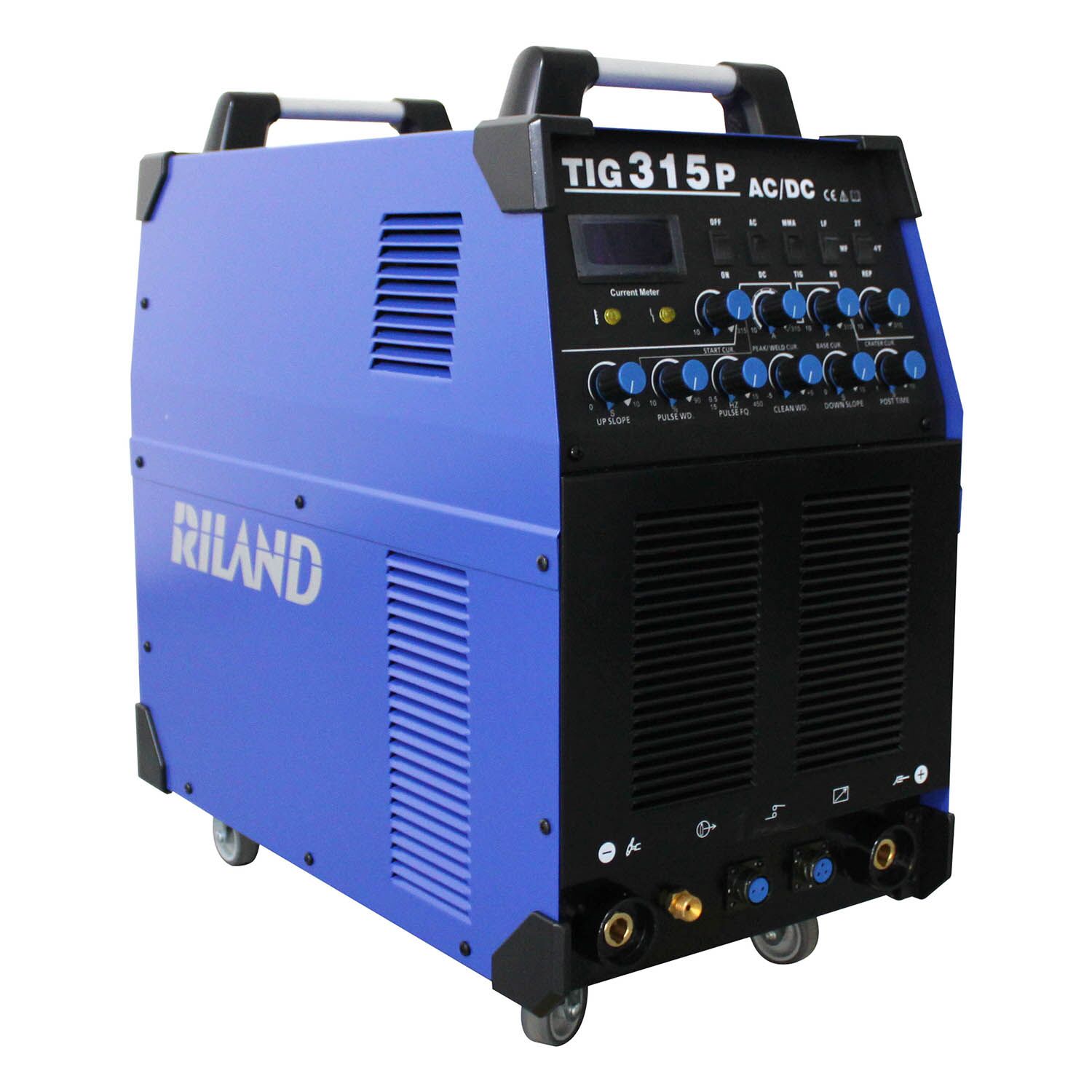

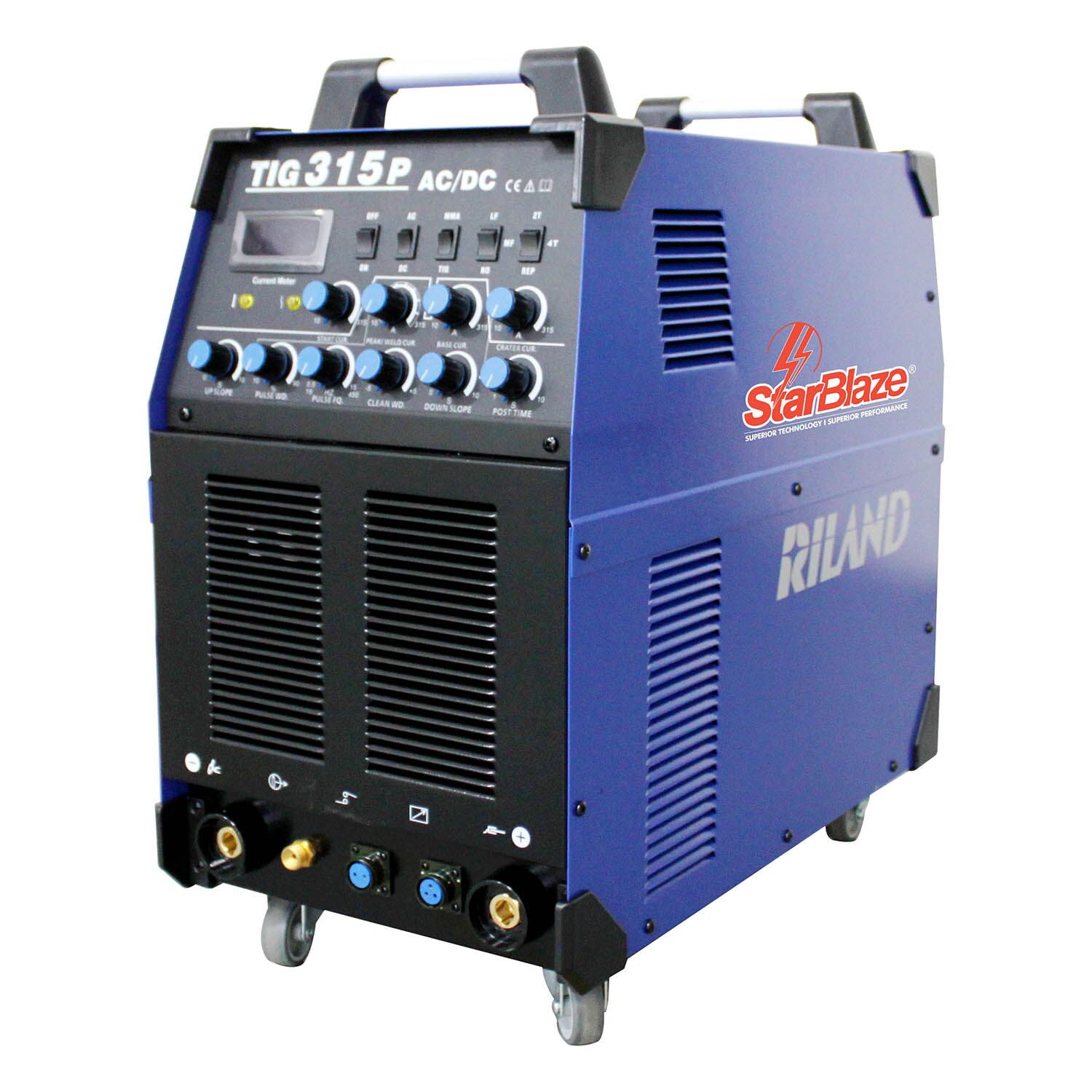

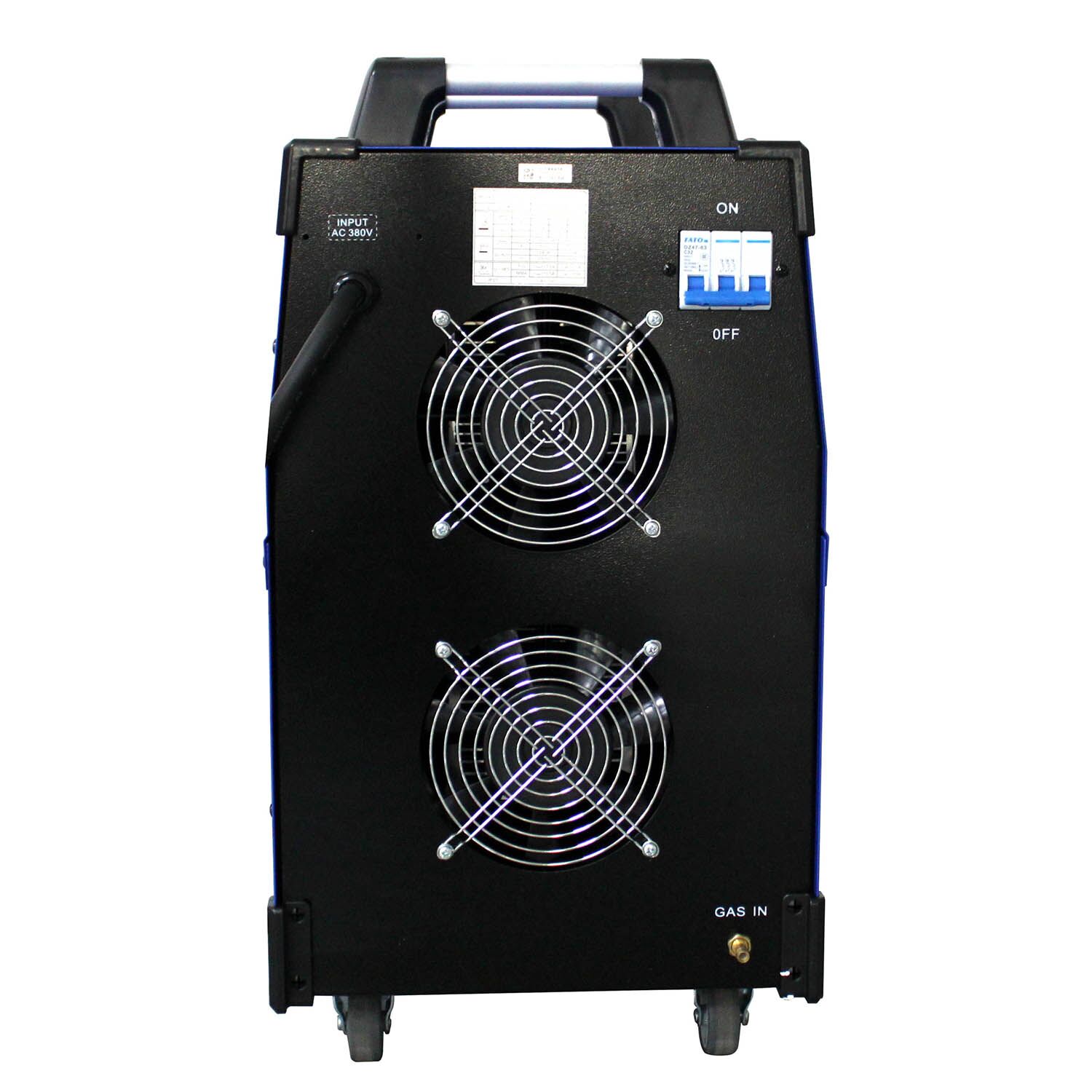

The TIG 315P AC/DC is a professional-grade TIG welding machine designed for performance and precision in industrial environments. With dual functionality (HF TIG and MMA), it enables high-quality welds on a wide range of metals, including aluminum and stainless steel. Built with robust components and a tri-proof air duct system, it ensures long-term reliability in demanding conditions. The machine offers full control over welding parameters—pulse settings, current levels, slopes, and gas post-flow—giving professionals the flexibility to fine-tune every weld.
Key Features
Pulse frequency and pulse width adjustable for fine arc control Up-slope and down-slope settings for smoother arc transitions Adjustable post-flow gas timing to protect welds from oxidation Start current, peak current, background current, and crater current all individually adjustable Dual-mode operation: HF TIG & MMA welding Rugged tri-proof (dust, moisture, corrosion) air duct design for enhanced durability Built-in protection against under-voltage, over-voltage, and over-current
Industries
Fabrication & Heavy Engineering Oil & Gas Power Plants Railways & Transport Equipment Aerospace & Defense Shipbuilding & Marine Petrochemicals & Refineries
Processes
TIG Welding (AC/DC) of Stainless Steel, Aluminum, Mild Steel, Copper, and Nickel Alloys MMA Welding of ferrous and non-ferrous metals Precision welding for critical fabrication and repair tasks
Product Details
| ITEM | TIG 315P AC/DC | |
| TIG 315P AC/DC | 3P-415±15% | |
| Frequecy (Hz) | 50/60 | |
| Rated (A) Input Current | 17.2 (TIG) | 17.0 (MMA) |
| Rated Input Power (KVA) | 12.36 | 12.22 |
| Output Current (A) | 12-300 | 12-245 |
| Output Voltage Range (V) | 10.4-39 | 20.4-42 |
| No-Load Voltage (V) | 62 | |
| No-Load Loss (W) | 100 | |
| Power Factor | 0.9 | |
| Insulation Grade | F | |
| Efficeincy | >85% | |
| Housing Protection Grade | IP21 | |
| Weight (Kg) | 36 | |
| Dimensions (mm) | 609 x 332 x 622 | |
